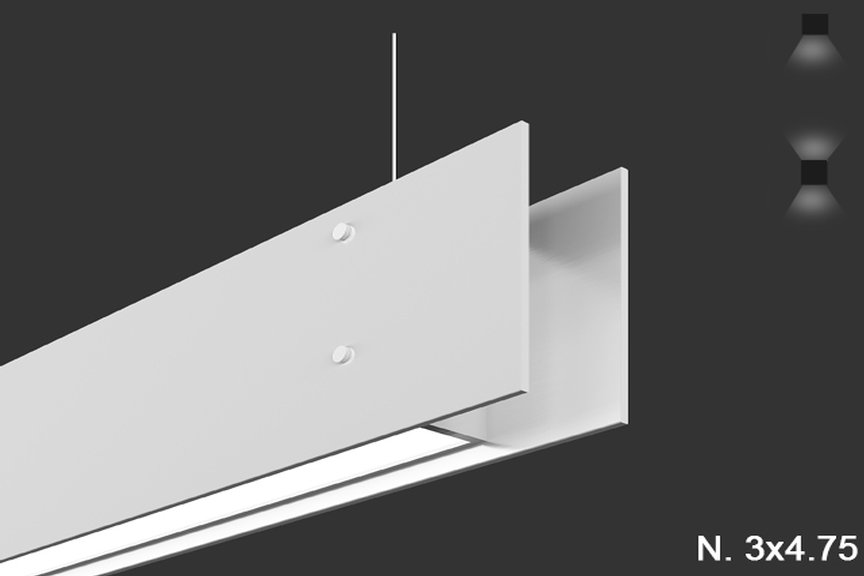

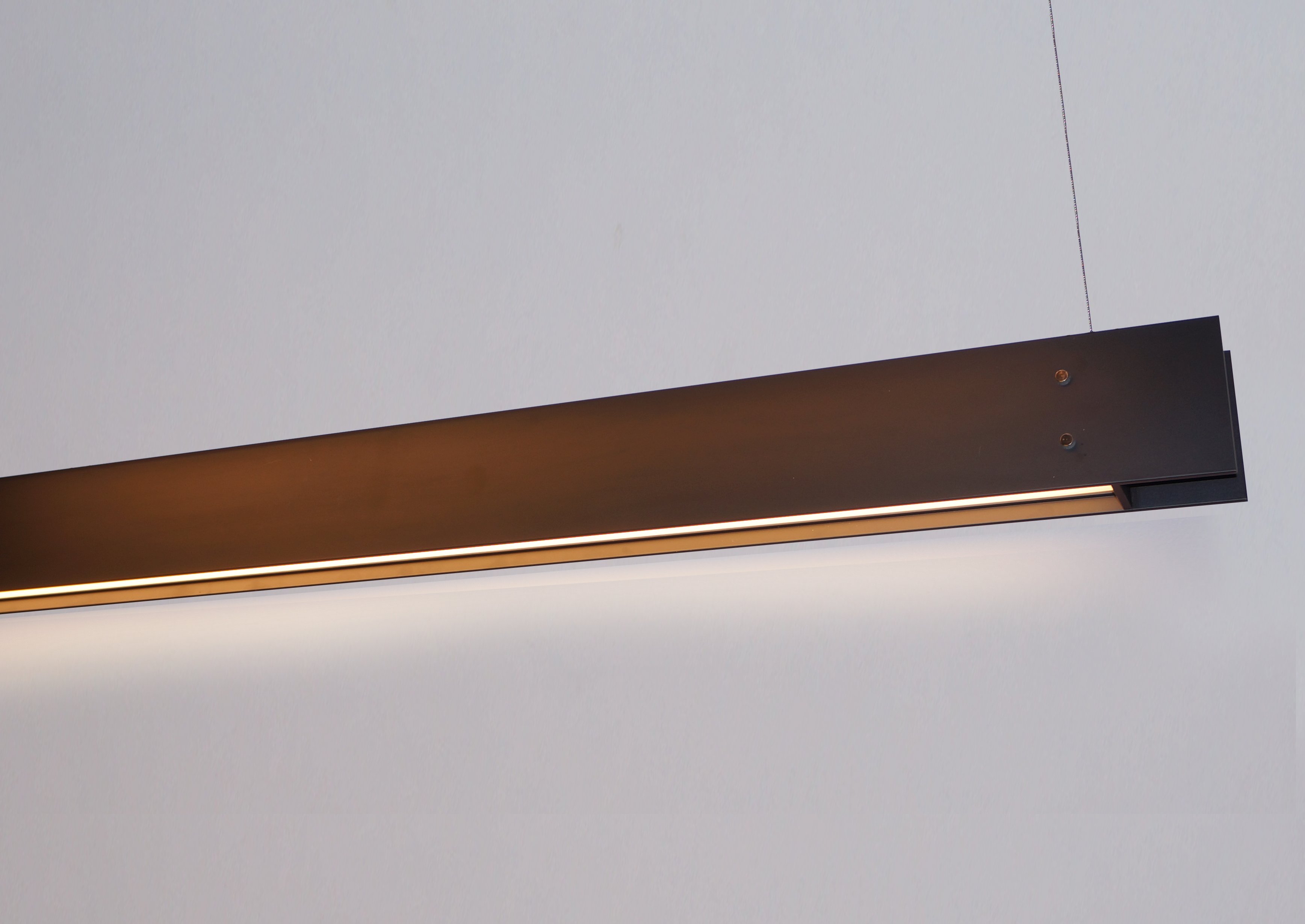

• Realistic steel mini-truss in aluminum

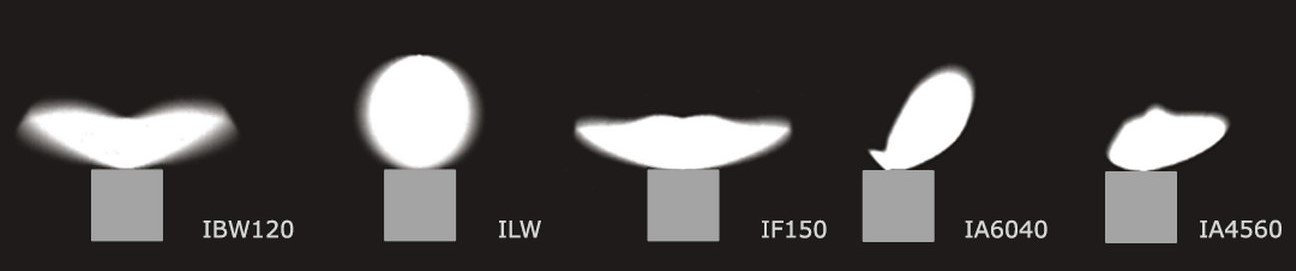

  • Direct, Indirect or Direct/Indirect light distribution
  • Two piece extruded aluminum housing with integral driver

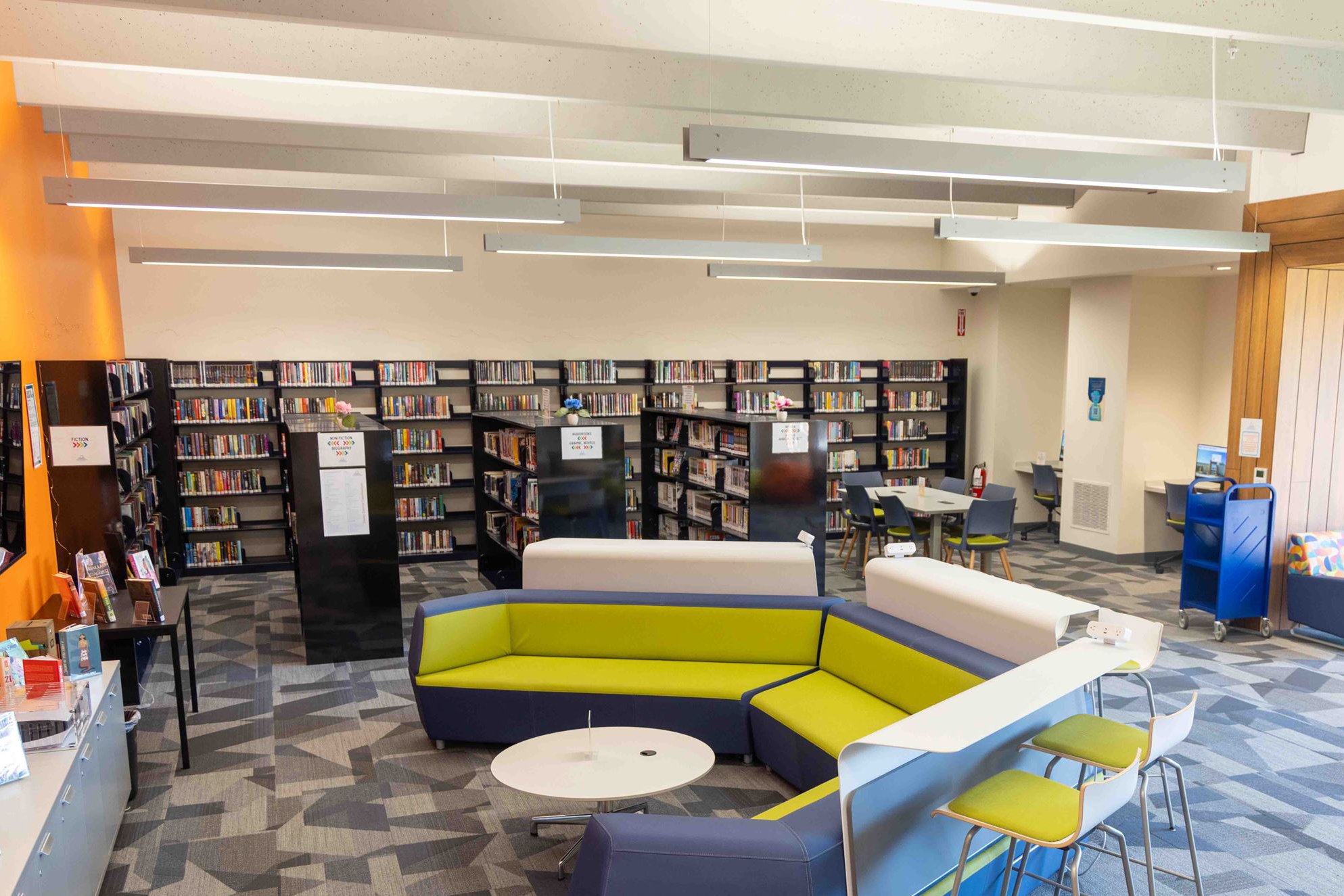

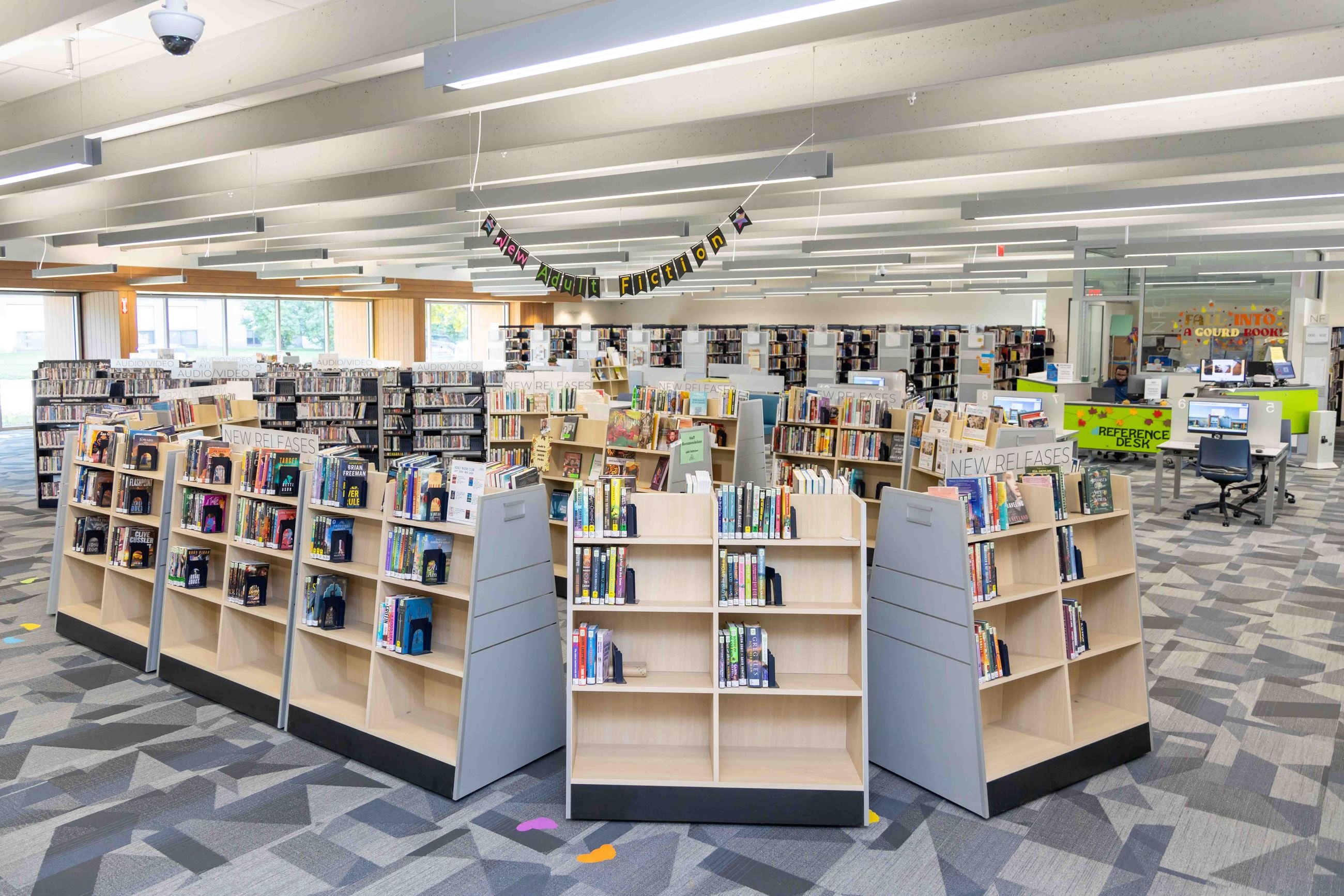

  • Continuous row mounting, standard
  • Can also be specified as surface ceiling or surface wall

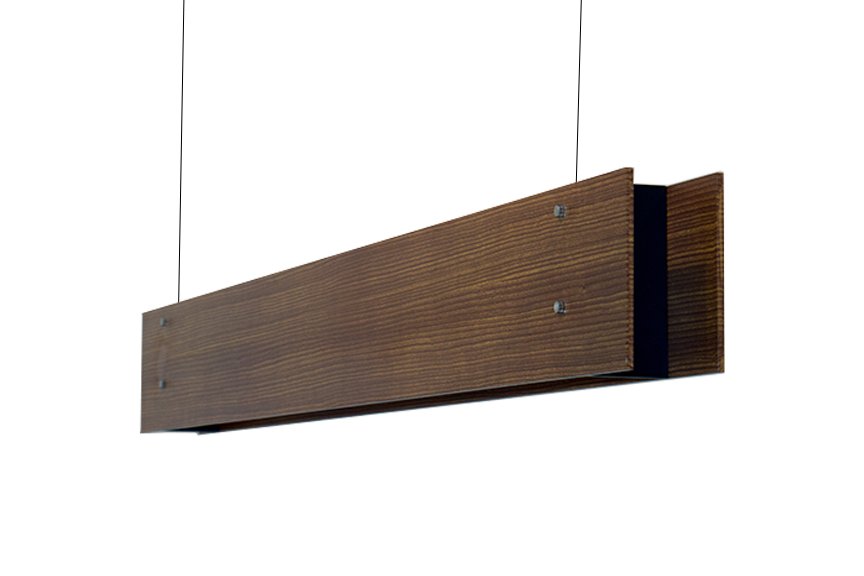

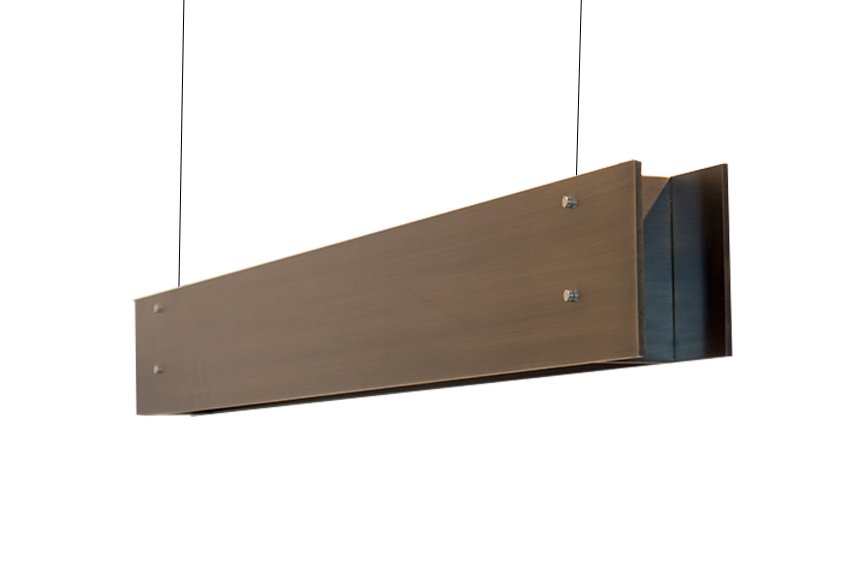

  • Standard color white, black, custom wood, anodizing, RAL/Pantone #

Construction & Mounting

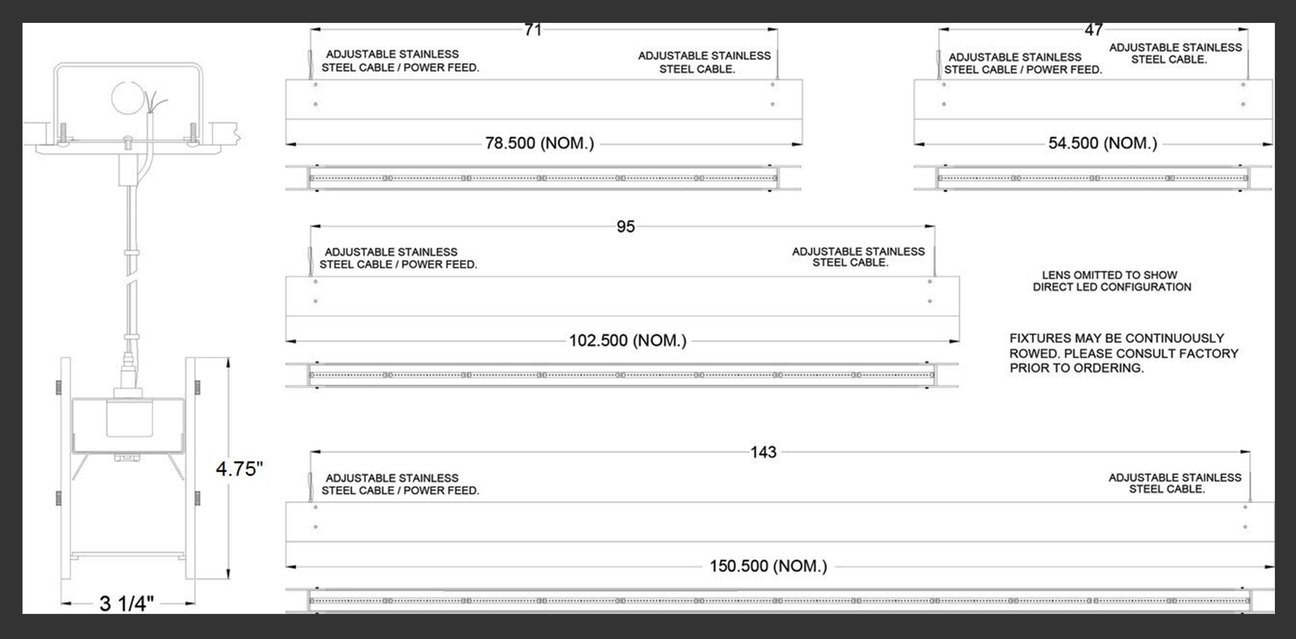

Mini version side panels and end details are ¼” x 4.75" thick extruded aluminum and are supplied in nominal lengths of 4 ft., 6 ft., 8 ft. and 12 ft. Side panels are secured with decorative thumb screws. Side panels do not need to be removed during installation or for maintenance. Fixtures may be continuously rowed (contact factory for details). Internal components are constructed from min. 20 gauge die-formed steel. Easy access to driver and LED boards. Custom sizes are available.
Integral powder-coated LED housings with excessive reflectivity for increased lumen output is built into our luminaires
Standard powder-coated colors are white and black. Custom processed wood finishes and aluminum anodized finishes are available as well, see finishes chart. We will also accept RAL and Pantone numbers for powder-coating color choices.
Direct component provided with a soft white acrylic lens formulated for LED light sources. Lens lifts out for maintenance. Indirect LED strips are mounted in an extruded aluminum channel with an integral clear acrylic dust cover.
Cable mounting with various size canopies and power feeds. Cable uses gripper style locking for field adjustments. Canopy mounts to standard J-box. Can also be stem mounted. See accessories for more information.

LED Performance

LED Output CCT Color Temp Watts Lumens Lumens per Watt CCT Multiplier
Low 3000 4.3 WPF Direct (3.4 WPF Indirect) 350 LPF 82 2700 = .95
Medium 3000 6.25 WPF Direct (4.8 WPF Indirect) 500 LPF 81 3000 = 1
High 3000 9.43 WPF Direct (7.3 WPF Indirect) 750 LPF 80 3500 = 1.01
Very High 3000 12.7 WPF Direct (9.7 WPF Indirect) 1000 LPF 79 4000 = 1.03
  • The table above is a quick reference. When calculating loads make sure you add direct and indirect LPW to get total wattage. Please refer to photometric report for detailed information.
  • Our light engines are precisely designed for optimal operation of LED assemblies.
  • Our standard LED's CCT (correlated color temperature) range is 2700K to 4000K. Other CCT values are available upon request.
  • We log LED bin codes for each project we supply to ensure color consistency and keep a record of those projects for future reference.
  • CRI offered is 80+, and 90+ Note: on 90+ CRI use .85 multiplier
  • Tunable white, warm dim and other special LED colors available.
  • We design our own printed circuit boards to ensure high luminescence efficiency, low thermal resistance and long-term reliable operation.
  • Light engines are easily replaced.
  • We use only recognized brand LED's with 3 SDCM (standard deviation color matching) with high color consistency. 2 SDCM available upon request.
  • LRP - “LED Reel Program” – LED’s for printed circuit boards come on reels’ like old 8mm projectors and they're sold in lots just like fabric. At Picasso Lighting, we have a program where we make sure all of your reels come from the same lot for each project. This ensures excellent color consistency in large open spaces.
  • LED life is rated at 50,000 hours
  • Custom Lumens Available

Electrical / Driver

  • Our drivers are specifically selected based on fixture application to ensure ultimate reliability and long life. We use only UL recognized brands of LED drivers.
  • If required, we can supply premium drivers such as Lutron, Eldoled and others upon request. Advanced control systems compliant drivers such as POE,DALI, DMX, etc. are also available.
  • Rated life (90% survivorship) of 50,000 hours at 50º C max. ambient (and 70º C max. case) temperature. At maximum driver load: Efficiency >84%, PF>0.9, THD<20%.
  • Our LED drivers feature HPF (high power factor), universal voltage 110 - 277 VAC and include 0-10V dimming.
  • Emergency drivers are factory installed, long life, high temperature, recyclable Ni-Cad battery pack with test switch and charge indicator. EMR is minimum of 90 minutes operation to meet code.

Build Your Spec Sheet

Certifications & Warranties

  • Limited five-year (50,000 hours) warranty on all products.
  • We can produce I.C. rated fixtures upon request.
  • We are IBEW manufactured and assembled
  • UL and CUL listed for dry and damp locations.
  • Chicago Plenum products are available upon request.
  • Made in the U.S.A.



Catalog Number LED IES File PDF Report


Truss Mini Pendant Standard Spec Sheet DOWNLOAD
Truss Mini Pendant Custom Spec Sheet BUILD
