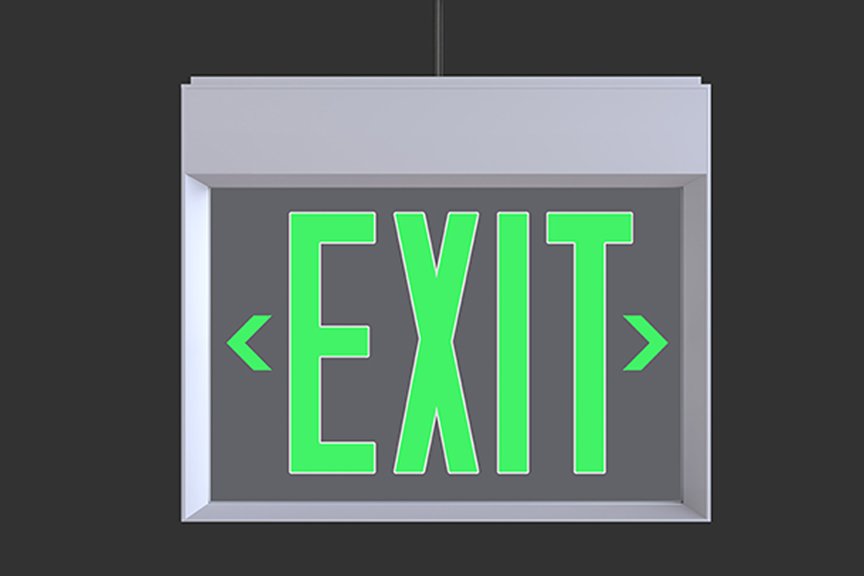

Framed Exit Sign
Overview
- The aluminum frame minimizes light projection at the edge of the sign. Frame Out with stem comes with a canopy cover and four 12” stems that can be screwed together for a one to four foot drop. Custom stem lengths are also available. In addition to white, black, and silver, the sign can be specified in anodized, plated, woodgrain, and custom RAL-matched finishes—flexibility that permits better visual integration into the interior environment.
- Designed with architects, engineers, and lighting designers in mind
- All-aluminum extruded housing with high-grade acrylic face
- Removable front cover for easy installation
- Optional 6” or 8” lettering in red or green
- Field-removable arrows, allowing the same sign to indicate right, left, or dual directionality
- Dual Voltage 120v/277v AC with long-life LED illumination
- Easily accessible test switch and charge rate indicator
- UL 924, NEC, OSHA, and NYC approved
- Listed for damp locations
- Developed in collaboration with Gensler serving as product design consultant
- North America/Europe US Patent No. 10,867,534
- Made to order in the USA
- Choice of standard acrylic lens or premium laser cut acrylic lens which provides a more even, sharper illumination.
Construction & Mounting
- HOUSING
- Housing is constructed of all extruded aluminum. The front cover is removable for easy installation.
- MOUNTING

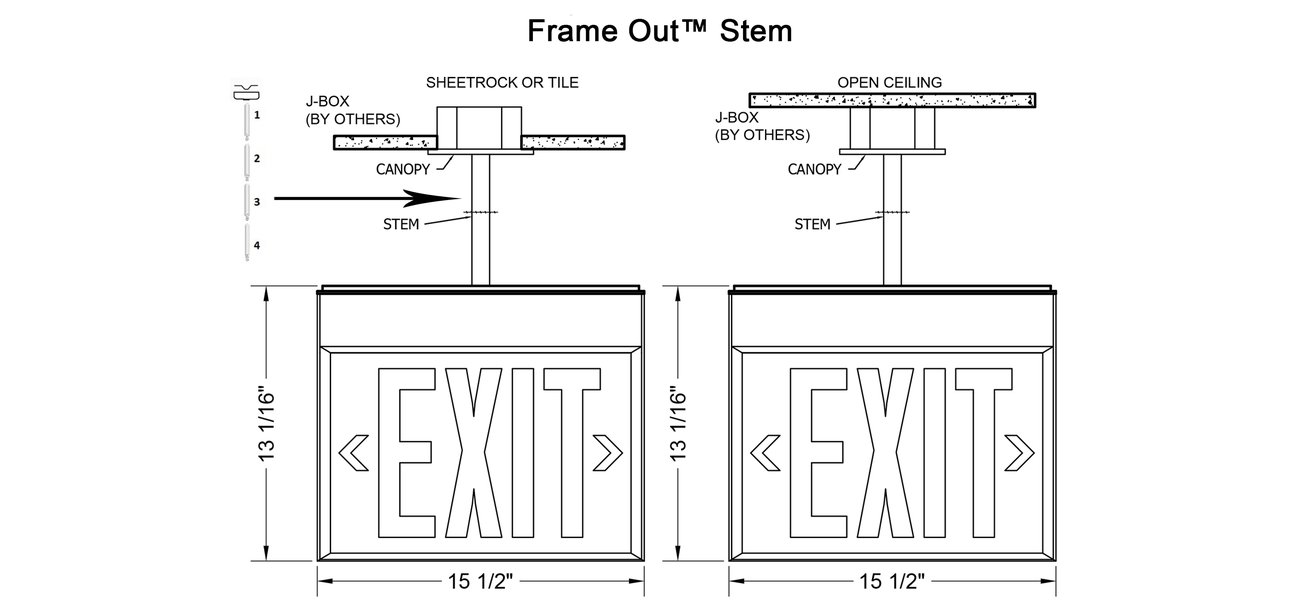

- Stem mount comes with four, one foot stems that can be screwed together to drop exit one to four feet from the J-Box. Custom stems are also available.
- LABELING
- Buy America Build America, Buy American Act, Made in USA, Picaso Lighting qualifies for all. Items purchased for use in a covered infrastructure project must meet the following requirements: Iron and steel: All manufacturing processes, from the initial melting stage through the application of coatings, occurred in the U.S. Manufactured products: All products are manufactured in the U.S., and the cost of its components that are mined, produced, or manufactured in the U.S. is greater than 75 percent (we meet 2029 requirements) of the total cost of all components. Construction materials: All manufacturing processes occurred in the U.S. If you have a BABA purchase order, please check the BABA box under options so we can purchase a qualifying LED Driver. UL Approved IBEW Union Made in USA. UL Approved IBEW Union Made
- OPTICS
- The "Frame Out" stem incorporates a strip of long-lasting LEDs at the bottom of the housing to illuminate the sign evenly. LEDs are red or green to enhance the red or green exit sign and direction arrows.
- FINISH

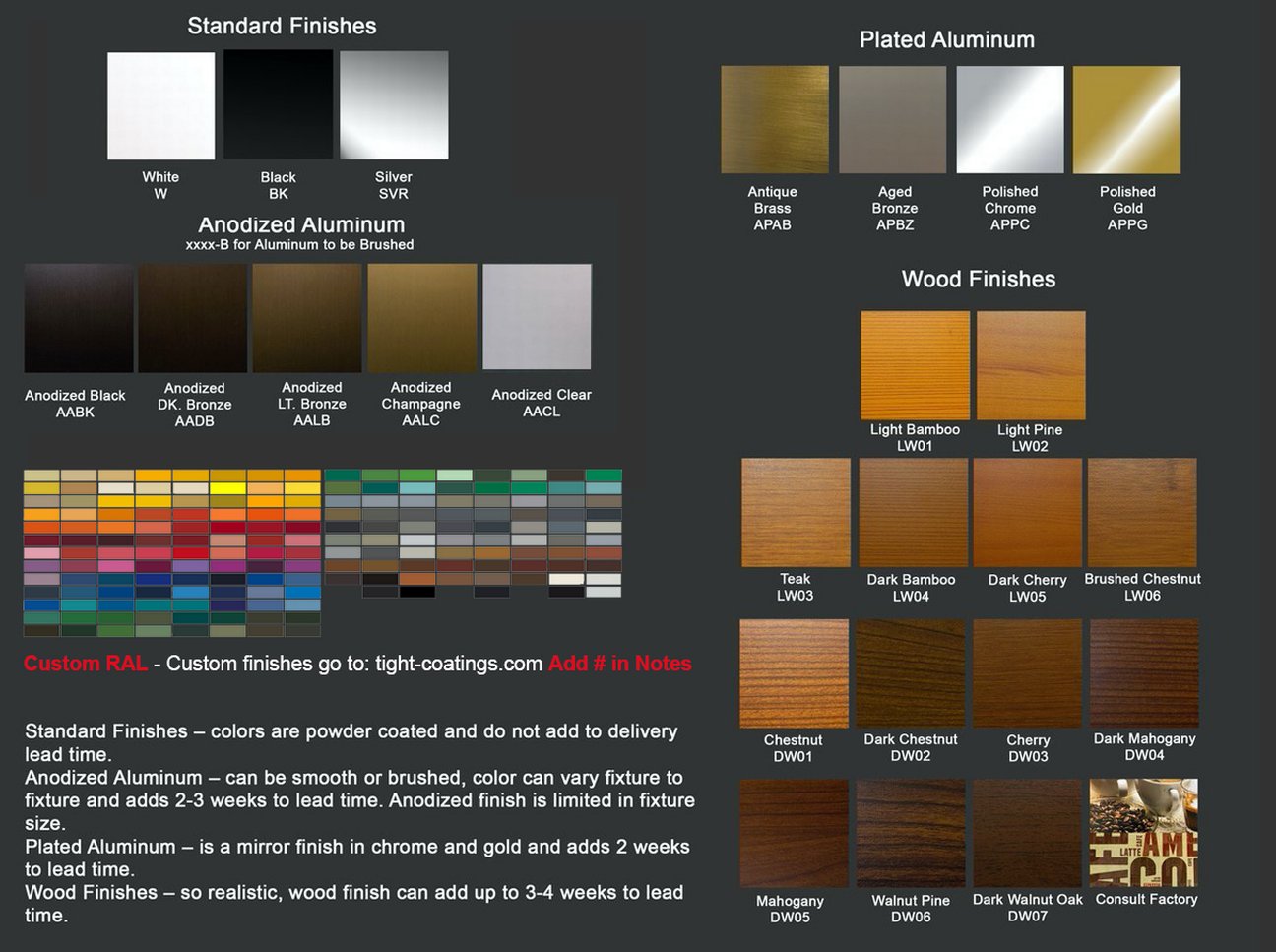

- Standard powder-coated colors are white, black and silver. Custom processed wood finishes, aluminum anodized finishes, chrome/gold plating, and custom finishes are available as well. We also accept RAL and Pantone numbers for powder-coating color choices.
LED Performance
| LED Output | CCT Color Temp | Watts | Lumens | Lumens per Watt | CCT Multiplier |
|---|---|---|---|---|---|
| Soft | Red | 3.72 TW 120v | NA | NA | NA |
| Soft | Red | 3.87 TW 277VAC | NA | NA | NA |
| Soft | Green | 3.72 TW 120v | NA | NA | NA |
| Soft | Green | 3.87 TW 277VAC | NA | NA | NA |
- The table above is a quick reference.
- Our light engines are precisely designed for optimal operation of LED assemblies.
- Relamp LEDs with only factory lamp assembly.
- We design our own printed circuit boards to ensure high luminescence efficiency, low thermal resistance and long-term reliable operation.
- Light engines are easily replaced.
Electrical / Driver
- Drivers - Our drivers are specifically selected based on fixture application to ensure ultimate reliability and long life. We use only UL recognized brands of LED drivers. Our LED drivers feature HPF (high power factor), universal voltage 110 - 277 VAC and include 0-10V dimming. Please note, 277v has longer distances from power feed to power feed then 120v.
- UL 924 approved under emergency lighting and power equipment.
- EMR is a minimum of 90 minutes operation to meet code.
- Replace the battery with MYD battery PN AAA300, rated 300mah,4.8v.
- Our LED drivers feature HPF (high power factor), universal voltage 110 - 277 VAC.
- The emergency battery is a recyclable Ni-Cad battery at 4.8V @ 300ma.
- Test switch and charge indicator.
- Suitable for damp location. Use in 10 celsius (min) to 40 celsius (max) ambient temperature.
Certifications & Warranties
- Limited five-year limited warranty on all products that are installed according to the product’s specifications. Fixture must be properly installed by qualified licensed electricians, who meet and understand local installation requirements. Proper ambient conditions are to be met. The normal indoor temperatures of 50-90 degrees F, no more than 95% RH and sufficient air flow are required. Fixture should not be modified, and no maintenance or repairs should be performed without the written authorization from Picasso Lighting.
- We manufacture based on approved spec sheets and submittals signed by the customers. Change orders must be in writing and will delay delivery.
- Picasso Lighting reserves the right to repair or replace a defective product with another product with a similar design and the same or better performance, or to refund the distributor for the purchase price. The costs of labor to replace luminaires are not covered.
- Warranty does not cover damage caused by transportation, damage caused by using the fixture in an area it is not UL rated for, damage caused by negligence, lack of maintenance, attempts to repair by unqualified or unauthorized personnel, by using non-original accessories/parts, fixtures installed in systems without power surge protection.
- Picasso Lighting must receive in writing any complaints regarding the defective products, no later than 3 weeks from delivery addressed to: [email protected]. Picasso Lighting will send a field technician to the site to evaluate the said defective product or may require product to be sent back to the factory for repair. The customer is responsible for the costs of disassembly and reassembly. We do accept field repairs and replacement labor from licensed electrical contractors but not without a written agreement signed by Picasso Lighting official. Failure to adhere to all warranty and certifications will void any recompense and the warranty.
- IBEW USA Union All fixtures are IBEW manufactured and assembled in the USA. UL listed for dry and damp locations.
