The aluminum frame, which minimizes light projection at the edge of the sign, comes with a perforated mounting backplate to cover the J-box for a clean looking installation. In addition to white, black, and silver, the sign can be specified in anodized, plated, woodgrain, and custom RAL-matched finishes—flexibility that permits better visual integration into the interior environment.
Designed with architects, engineers, and lighting designers in mind
Unique spackle flange creates a clean, European appearance (no 5” canopy cover) in gypsum board
Acoustic panel grid ceilings can be installed with conduit for clean installation
All-aluminum extruded housing with high-grade acrylic face
Removable front cover for easy installation
Optional 6” or 8” lettering in red or green
Field-removable arrows, allowing the same sign to indicate right, left, or dual directionality
Dual Voltage 120v/277v AC with long-life LED illumination
Easily accessible test switch and charge rate indicator
UL 924, NEC, OSHA, and NYC approved
Listed for damp locations
Developed in collaboration with Gensler serving as product design consultant
Choice of standard acrylic lens or premium laser cut acrylic lens which provides a more even, sharper illumination.

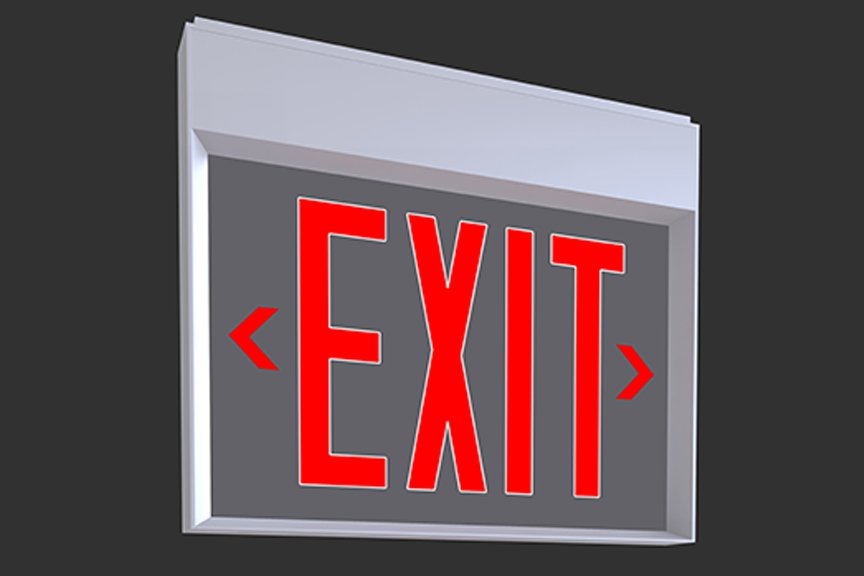

Housing is constructed of all extruded aluminum. The front cover is removable for easy installation.

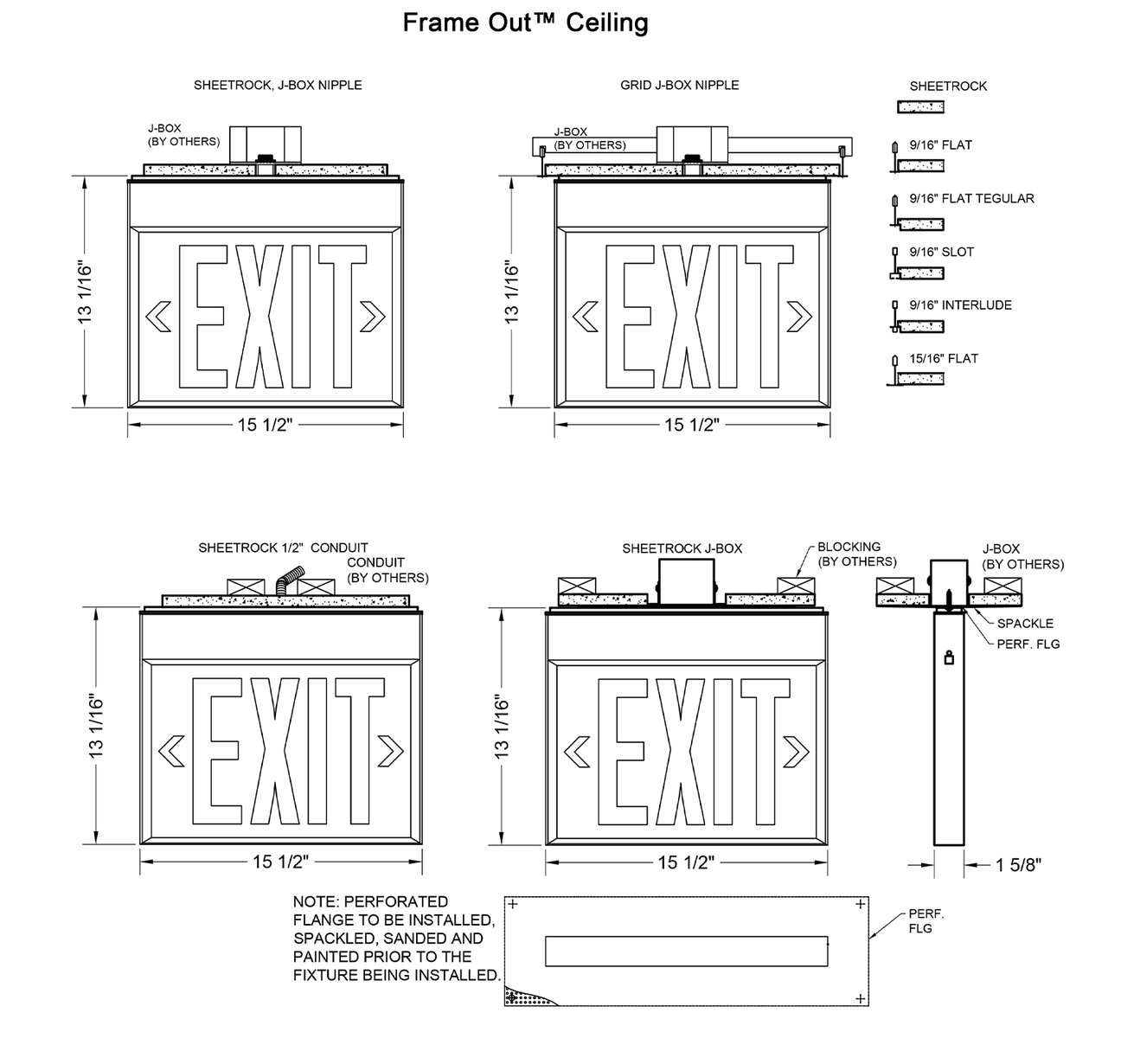

To mount in sheetrock, we add a perforated plaster flange to attach to the J-Box for a clean installation. In false ceilings we suggest conduit.
UL Approved IBEW Union Made
The "Frame Out" ceiling incorporates a strip of long-lasting LEDs at the bottom of the housing to illuminate the sign evenly. LEDs are red or green to enhance the red or green exit sign and direction arrows.
Standard powder-coated colors are white, black and silver. Custom processed wood finishes, aluminum anodized finishes, chrome/gold plating, and custom finishes are available as well. We also accept RAL and Pantone numbers for powder-coating color choices.
CCT Color Temp
Lumens per Watt
3.72 TW 120v
3.87 TW 277VAC
3.72 TW 120v
3.87 TW 277VAC
The table above is a quick reference.
Our light engines are precisely designed for optimal operation of LED assemblies.
Relamp LEDs with only factory lamp assembly.
We design our own printed circuit boards to ensure high luminescence efficiency, low thermal resistance and long-term reliable operation.
Light engines are easily replaced.
Electrical / Driver
Drivers - Our drivers are specifically selected based on fixture applications to ensure ultimate reliability and long life. We use only UL recognized brands of LED drivers. Our LED drivers feature HPF (high power factor), universal voltage 110 - 277 VAC.
UL 924 approved under emergency lighting and power equipment.
EMR is a minimum of 90 minutes operation to meet code.
Replace the battery with MYD battery PN AAA300, rated 300mah,4.8v.
Our LED drivers feature HPF (high power factor), universal voltage 110 - 277 VAC.
The emergency battery is a recyclable Ni-Cad battery at 4.8V @ 300ma.
Test switch and charge indicator.
Suitable for damp location. Use in 10 celsius (min) to 40 celsius (max) ambient tempature.
Build Your Spec Sheet
Certifications & Warranties
Limited five-year (50,000 hours) warranty on all products. Limited ten-year (100,000 hours) warranty on all Lutron drivers.
DLC listed products will have DLC Logo.
Chicago Plenum and IC products are available upon request.
Warranty does not cover damage caused by transport, damage caused by using the fixture in an area it is not UL rated for, damage caused by negligence, lack of maintenance, attempts to repair by unqualified or unauthorized personnel, by using non-original accessories/parts, fixtures installed in systems without power surge protection.
UL and CUL listed for dry and damp locations.
IBEW USA Union All fixtures are IBEW manufactured and assembled in the USA.
We manufacture based on approved spec sheets and submittals signed by professionals responsible. Change orders must be in writing and will delay delivery.
Picasso Lighting must receive in writing any thought to be defective products discovered, no later than 4 weeks from delivery to; [email protected]. Picasso Lighting will send a field technician to the site to evaluate the said defective product. We do accept field repair from licensed electrical contractors but not without a written agreement signed by Picasso Lighting official. Failure to adhere to all warranty and certifications will void any recompense and the warranty.
