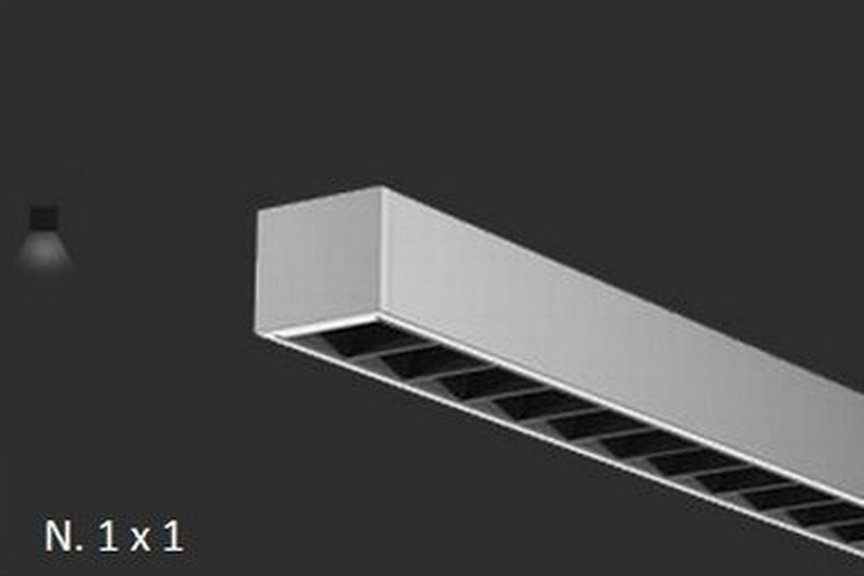

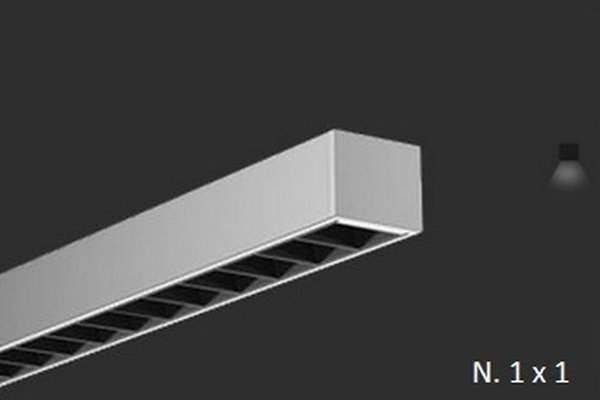

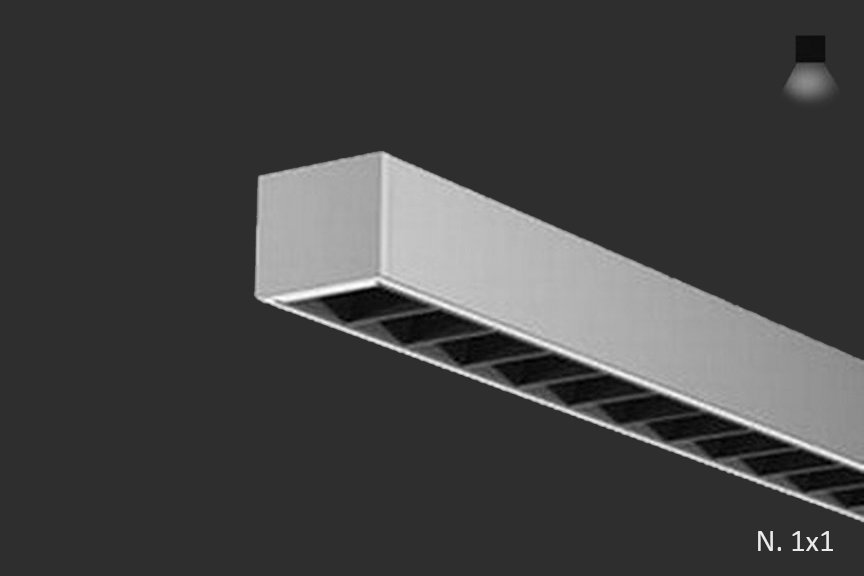

Sienna 1 Micro Cavity Lens
Surface
Overview
- Sienna 1 MCO surface was designed for architects, by architects. It's sleek design and performance is perfect for lighting areas that require architectural elements.
- Take a look below and enjoy a plethora of standard and special finishes. Woodgrain, anodized, plated mirror silver and brass, custom RAL as well.
- Canopies accessorize the Sienna 1 MCO in a round, square, and rectangular shape. Custom canopies are available as well.
- The Sienna 1 MCO is so small in profile, we need to remotely locate all the drivers.
- Drivers are offered in various remote installation types and fixture provides direct, indirect, and direct/indirect lighting. Power is supplied through cables and we can also tune in our drivers to specific lumen output if required.
- MCO is a fantastic choice for video conferencing in a board room.
- All Picasso Lighting fixtures are UL approved and made in the USA.
- High efficacy up to 135lm/W
- Square profile: 0.94” x 0.94”
- Nominal lengths from 2 to 8 feet in 6 inch increments.
- Choice of symmetric and asymmetric direct beam patterns.
- Choice of CCT, 80+ or 90+ CRI, and tunable white (2200K-6500K)
- Baffle is always Black

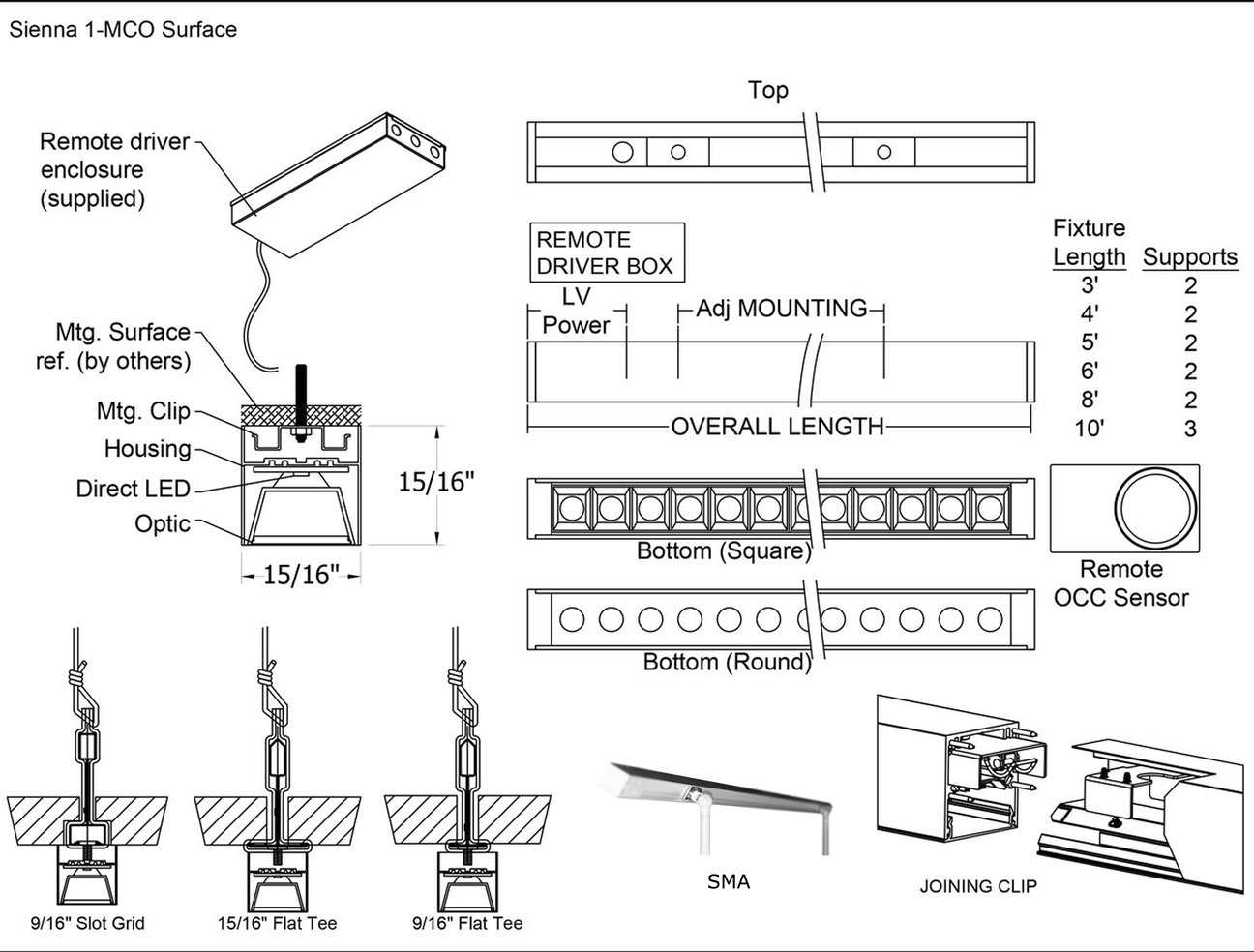

Construction & Mounting
- HOUSING
- Extruded aluminum housings are supplied in nominal lengths of 2 ft- 8 ft. Fixtures may be continuously rowed (contact factory for details). Easy access to remote driver and LED boards. End caps are extruded aluminum.
- REFLECTOR
- Integral powder-coated LED housing with excessive reflectivity for increased focused direct lumen output.
- FINISH
- Standard powder-coated colors are white, black, and silver. Custom processed wood finishes, aluminum anodized finishes, chrome/gold plating, and custom finishes are available as well. We also accept RAL and Pantone numbers for powder-coating color choices. (except for louver, always black)
- OPTICS
- Extruded snap-in black microcavity optics formulated for LED light sources.
- MOUNTING
- Surface mounted has remote driver with the Sienna 1 MCO because it's too small to fit a driver.The cable uses gripper-style locking for field adjustments. Mounting clips supplied for surface mount.
- LABELING
- UL Approved
LED Performance
| LED Output | CCT Color Temp | Watts | Lumens | Lumens per Watt | CCT Multiplier |
|---|---|---|---|---|---|
| Low | 3500k | 3.9 WPF | 350 LPF | D 88LPW | 2700 = .95 |
| Medium | 3500k | 5.8 WPF | 500 LPF | D 85 LPW | 3000=.98 |
| High | 3500k | 9.1 WPF | 750 LPF | D 82LPW | 3500=1 |
| Very High | 3500k | 12.8 WPF | 1000 LPF | D 78LPW | 4000=1.03 |
- The table above is a quick reference. When calculating loads make sure you add direct and indirect LPW to get total wattage. Please refer to photometric report for detailed information.
- Our light engines are precisely designed for optimal operation of LED assemblies.
- Our standard LED's CCT (correlated color temperature) range is 2700K to 4000K. Other CCT values are available upon request.
- We log LED bin codes for each project we supply to ensure color consistency and keep a record of those projects for future reference.
- CRI offered is 80+, and 90+ Note: on 90+ CRI use .85 multiplier
- Tunable white, warm dim and other special LED colors available.
- We design our own printed circuit boards to ensure high luminescence efficiency, low thermal resistance and long-term reliable operation.
- Light engines are easily replaced.
- We use only recognized brand LED's with 3 SDCM (standard deviation color matching) with high color consistency. 2 SDCM available upon request.
- LRP - “LED Reel Program” – LED’s for printed circuit boards come on reels’ like old 8mm projectors and they're sold in lots just like fabric. At Picasso Lighting, we have a program where we make sure all of your reels come from the same lot for each project. This ensures excellent color consistency in large open spaces.
- LED life is rated at 50,000 hours
- Custom Lumens Available
Electrical / Driver
- Drivers - Our drivers are specifically selected based on fixture application to ensure ultimate reliability and long life. We use only UL recognized brands of LED drivers. Our LED drivers feature HPF (high power factor), universal voltage 110 - 277 VAC and include 0-10V dimming. Please note, 277v has longer distances from power feed to power feed then 120v.
- If required, we can supply premium drivers such as Lutron, Eldoled and others upon request. Advanced control systems compliant drivers such as POE,DALI, DMX, etc. are also available, please consult factory.
- Rated life (90% survivorship) of 50,000 hours at 50º C max. ambient (and 70º C max. case) temperature. At maximum driver load: Efficiency >84%, PF>0.9, THD<20%.
- Our LED drivers feature HPF (high power factor), universal voltage 110 - 277 VAC and include 0-10V dimming.
- Remote emergency drivers are an option, long life, high temperature, recyclable Ni-Cad battery pack with test switch and charge indicator. EMR is a minimum of 90 minutes operation to meet code.
- POE - We are working with Molex/Igor POE systems. We can add a POE driver into our fixtures or remote them. Based on the fixture you select, we will notify you (or you can contact the factory) to see if we can install the P-driver or the P-driver needs to be remote. Just add POE1 in the spec and we will advise. Please keep in mind you need to specify a complete POE control system before specifying POE1.
Certifications & Warranties
- Limited five-year (50,000 hours) warranty on all products. Limited ten-year (100,000 hours) warranty on all Lutron drivers.
- DLC listed products will have DLC Logo.
- Chicago Plenum and IC products are available upon request.
- Warranty does not cover damage caused by transport, damage caused by using the fixture in an area it is not UL rated for, damage caused by negligence, lack of maintenance, attempts to repair by unqualified or unauthorized personnel, by using non-original accessories/parts, fixtures installed in systems without power surge protection.
- UL and CUL listed for dry and damp locations.
- IBEW USA Union All fixtures are IBEW manufactured and assembled in the USA.
- We manufacture based on approved spec sheets and submittals signed by professionals responsible. Change orders must be in writing and will delay delivery.
- Picasso Lighting must receive in writing any thought to be defective products discovered, no later than 4 weeks from delivery to; [email protected]. Picasso Lighting will send a field technician to the site to evaluate the said defective product. We do accept field repair from licensed electrical contractors but not without a written agreement signed by Picasso Lighting official. Failure to adhere to all warranty and certifications will void any recompense and the warranty.
