Overview

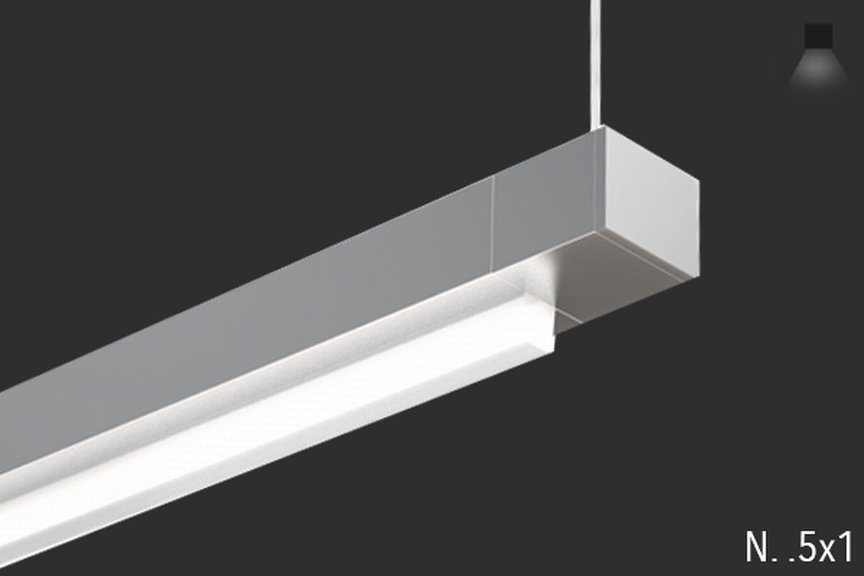

  • Gleam pendant was designed for architects, by architects. Its sleek design and performance is perfect for lighting areas that require sleek architectural elements.

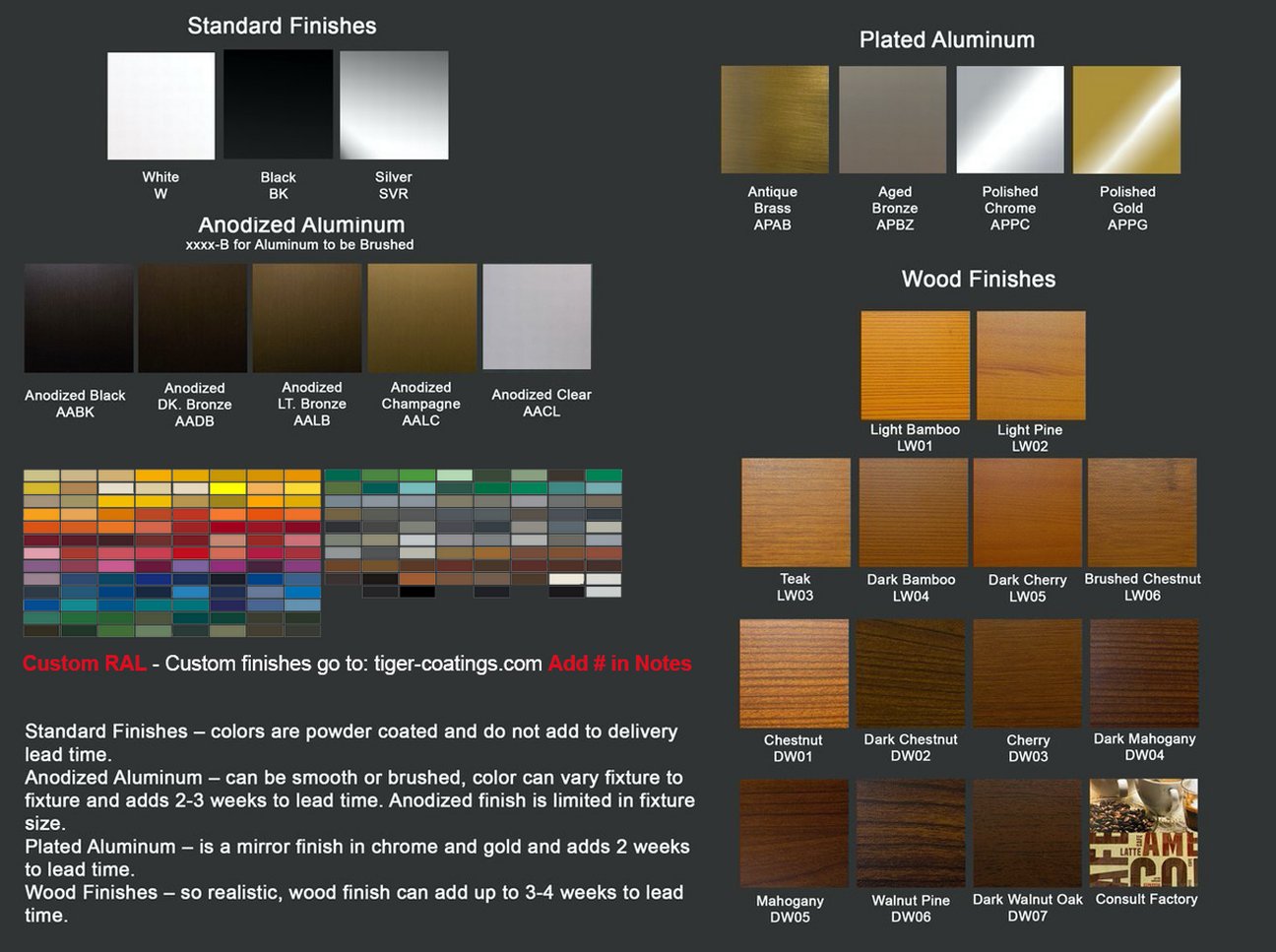

  • Take a look below and enjoy a plethora of standard and special finishes. Woodgrain, anodized, plated mirror silver and brass, custom RAL as well.

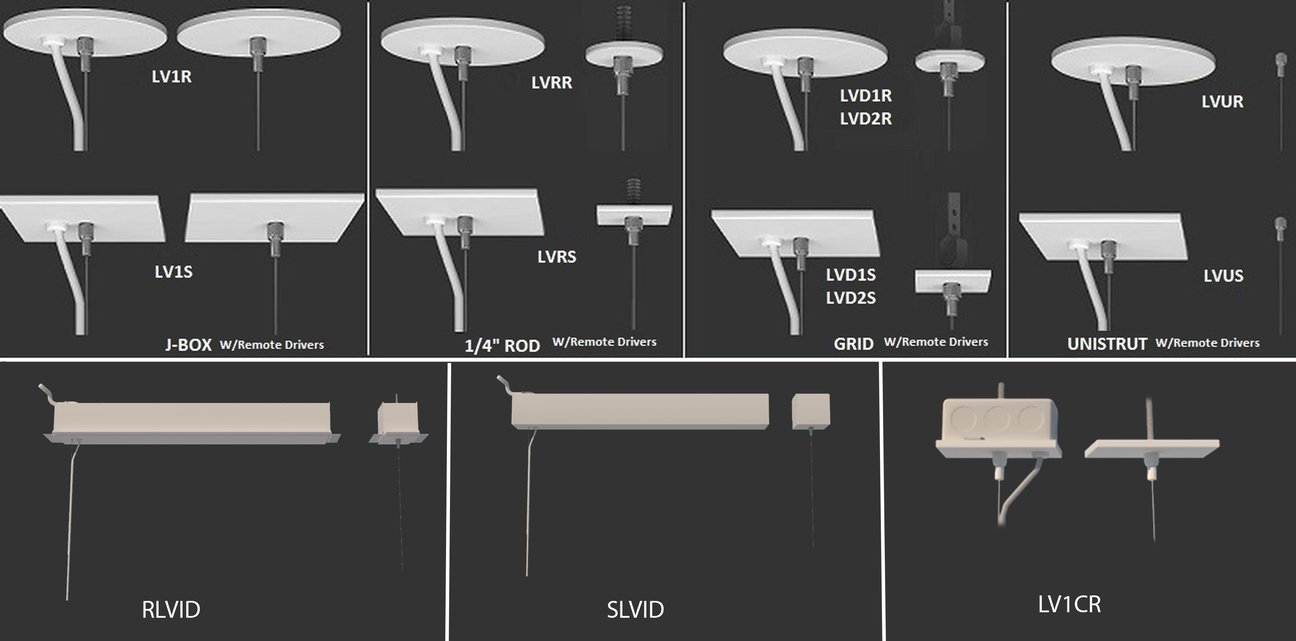

  • Canopies accessorize Gleam in a round, square and rectangular shape. Custom canopies are available as well.
  • The Gleam is so small in profile, we need to remotely locate all the drivers.
  • Drivers are offered in various remote installation types and fixture provides direct, indirect and direct/indirect lighting. Power is supplied through cables and we can also tune in our drivers to specific lumen output if required.
  • All Picasso Lighting fixtures are UL approved and made in the USA.
  • High efficacy up to 350LPF
  • Small Profile with nominal lengths from 2' to 8'
  • Optimized wide angle distribution for indirect uplight
  • Choice of CCT, 80+ or 90+ CRI, and tunable white (2700K-4000K)
  • Damp location rated
  • 5 Year, 50,000 Hour Warranty

Construction & Mounting

HOUSING
Extruded aluminum housings are supplied in nominal lengths of 2 ft- 8 ft. Fixtures may be continuously rowed (contact factory for details). Easy access to remote driver and LED boards. End caps are extruded aluminum.
REFLECTOR
Integral powder-coated LED housing with excessive reflectivity for increased lumen output
OPTICS
Extruded satin acrylic TIR optic provides excellent diffusion, high transmission, and no LED imaging.

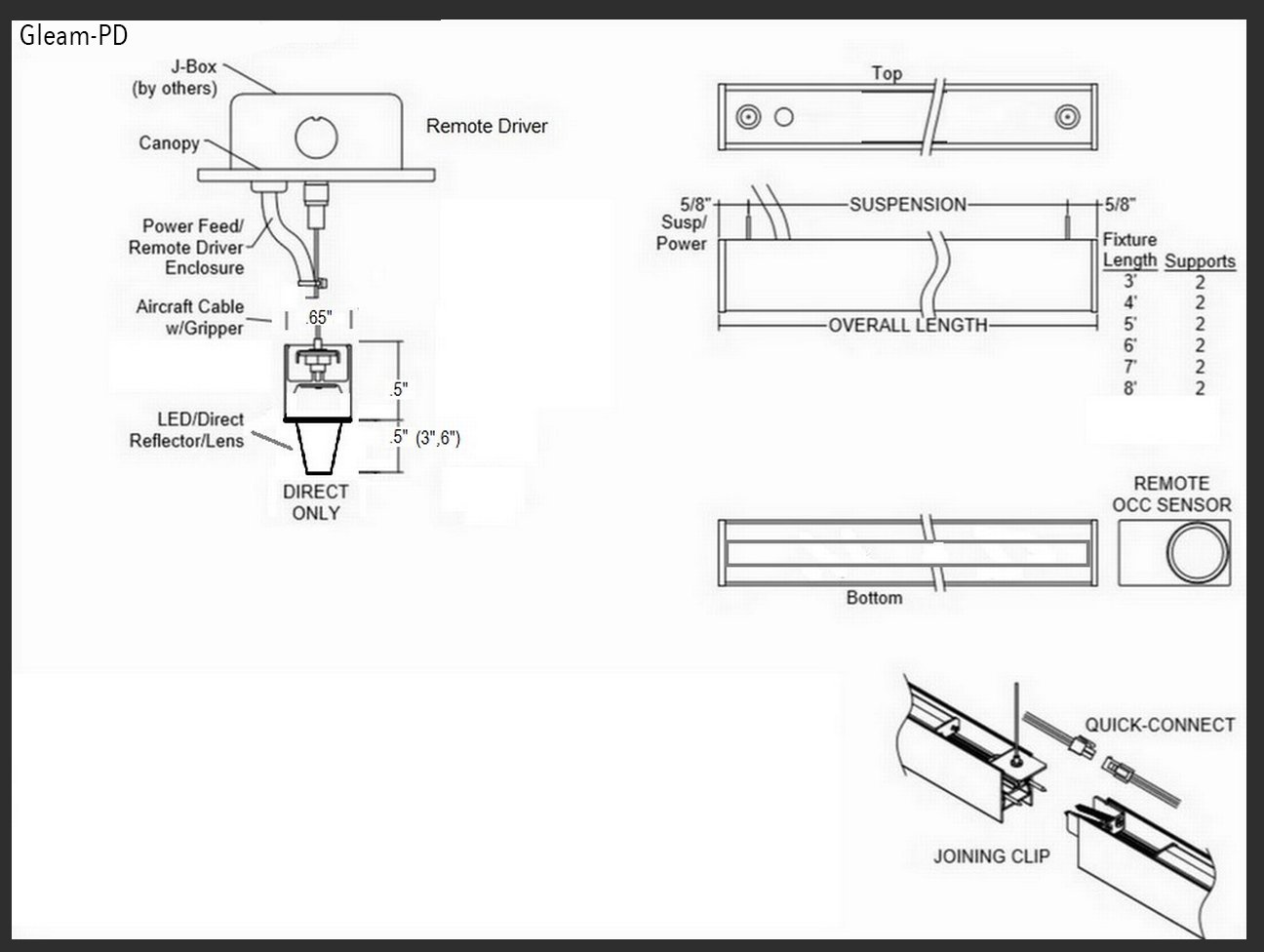

MOUNTING
Cable mounting supports and powers Gleam because it's too small to fit a driver. Various size canopies and different power supplies are available. The cable uses gripper-style locking for field adjustments and is connected to the driver or wire power supplied. Canopy mounts to standard J-box and the standard cable lengths are 4 feet.

LED Performance

LED Output CCT Color Temp Watts Lumens Lumens per Watt CCT Multiplier
Lowest 3000 7.6WPF 150LPF 22 1
Low 3000 14.3WPF 250LPF 21 1
Medium 3000 20.5 350LPF 21 1
  • The table above is a quick reference. When calculating loads make sure you add direct and indirect LPW to get total wattage. Please refer to photometric report for detailed information.
  • Our light engines are precisely designed for optimal operation of LED assemblies.
  • Our standard LED's CCT (correlated color temperature) range is 2700K to 4000K. Other CCT values are available upon request.
  • We log LED bin codes for each project we supply to ensure color consistency and keep a record of those projects for future reference.
  • CRI offered is 80+, and 90+ Note: on 90+ CRI use .85 multiplier
  • Tunable white, warm dim and other special LED colors available.
  • Custom Lumens Available
  • We design our own printed circuit boards to ensure high luminescence efficiency, low thermal resistance and long-term reliable operation.
  • Light engines are easily replaced.
  • We use only recognized brand LED's with 3 SDCM (standard deviation color matching) with high color consistency. 2 SDCM available upon request.
  • If you require a special LED manufacturer, please contact us. LED chip manufacturers used by Picasso are primarily (but not limited to) Nichia, Cree and Samsung.
  • LRP - “LED Reel Program” – LED’s for printed circuit boards come on reels’ like old 8mm projectors and they're sold in lots just like fabric. At Picasso Lighting, we have a program where we make sure all of your reels come from the same lot for each project. This ensures excellent color consistency in large open spaces.
  • LED life is rated at 50,000 hours

Electrical / Driver

  • Drivers - Our drivers are specifically selected based on fixture application to ensure ultimate reliability and long life. We use only UL recognized brands of LED drivers. Our LED drivers feature HPF (high power factor), universal voltage 110 - 277 VAC and include 0-10V dimming. Please note, 277v has longer distances from power feed to power feed then 120v.
  • Rated life (90% survivorship) of 50,000 hours at 50º C max. ambient (and 70º C max. case) temperature. At maximum driver load: Efficiency >84%, PF>0.9, THD<20%.
  • Emergency drivers are factory installed as an option, long life, high temperature, recyclable Ni-Cad battery pack with test switch and charge indicator. EMR is minimum of 90 minutes operation to meet code.
  • If required we can supply premium drivers such as Lutron, Eldoled and others upon request. Advanced control systems compliant drivers such as POE,DALI, DMX, etc. are also available, please consult factory.
  • Our LED drivers feature HPF (high power factor), universal voltage 110 - 277 VAC and include 0-10V dimming.
  • POE - We are working with Molex/Igor POE systems. We can add a POE driver into our fixtures or remote them. Based on the fixture you select, we will notify you (or you can contact the factory) to see if we can install the P-driver or the P-driver needs to be remote. Just add POE1 in the spec and we will advise. Please keep in mind you need to specify a complete POE control system before specifying POE1.

Build Your Spec Sheet

Certifications & Warranties

  • 1
  • 3
  • 5
  • 7
  • 2
  • 4
  • 6
  • 8

Downloads

PHOTOMETRIC REPORTS & IES

Catalog Number LED IES File PDF Report
Gleam 350 Lumens (LPF) Direct 80+ CRI 3000K DOWNLOAD

SPEC SHEETS

Gleam-PD Standard Spec Sheet DOWNLOAD
Gleam-PD Custom Spec Sheet BUILD

Instructions

Please contact factory for Instructions and Revit files. DOWNLOAD
