Overview

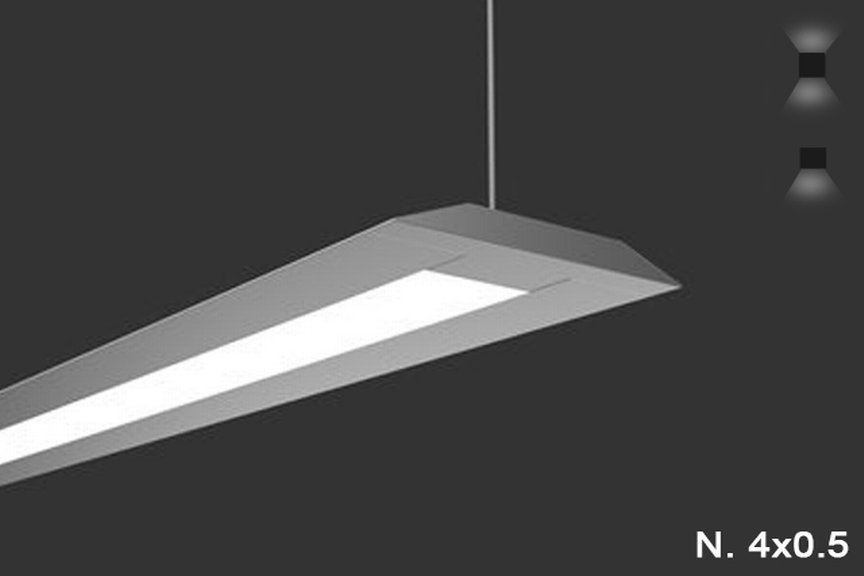

  • The Edge trapezoid profile pendant sleek design and performance is perfect for lighting areas that require architectural elements.
  • Take a look below and enjoy a plethora of standard and special finishes. Woodgrain, anodized, plated mirror silver and brass, custom RAL as well.

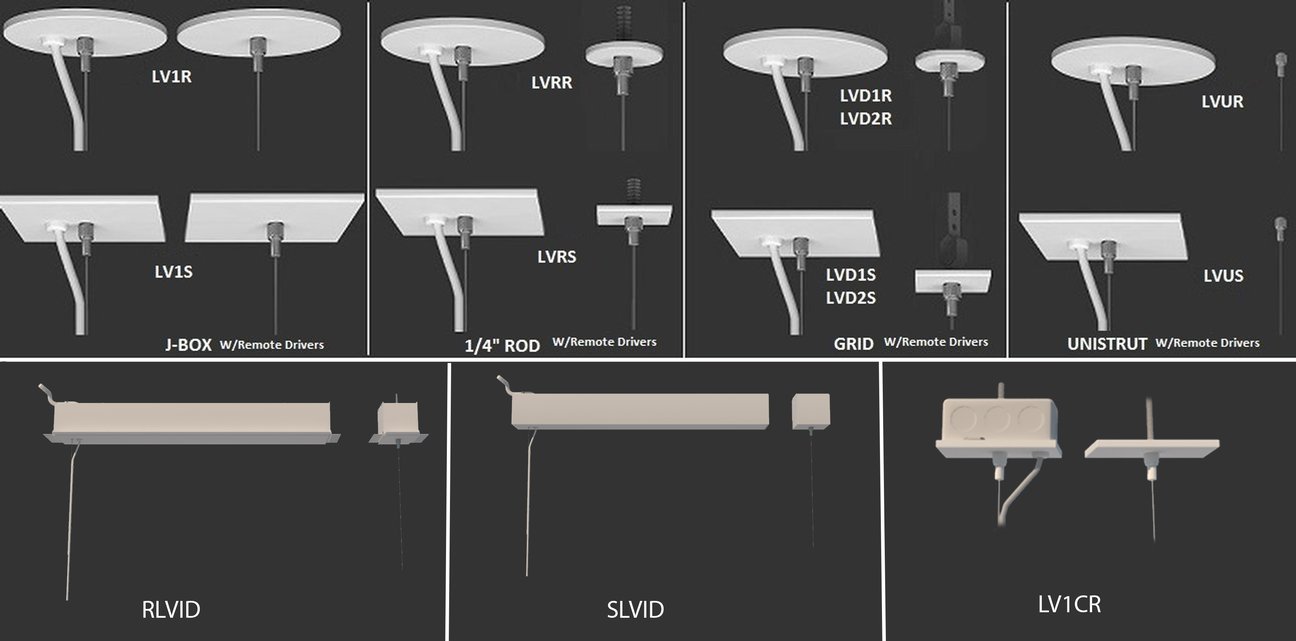

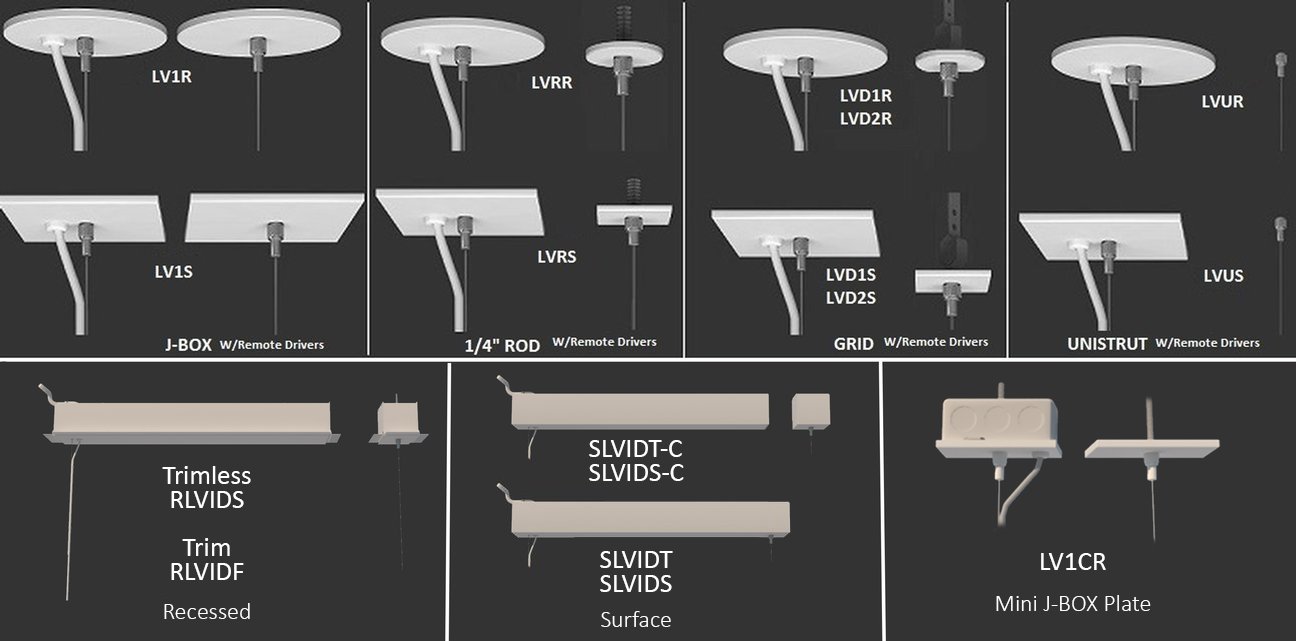

  • Canopies accessorize the Edge in a round, square, and rectangular shape. Custom canopies are available as well.
  • The Edge is so small in profile, we need to remotely locate all the drivers.
  • Drivers are offered in various remote installation types and fixture provides direct, indirect and direct/indirect lighting. Power is supplied through wire or cables and we can also tune in our drivers to specific lumen output if required.
  • All Picasso Lighting fixtures are UL approved and made in the USA.
  • The Edge is wired to dim direct /indirect together unless you check 2c in the options section.
  • High-performance overall fixture efficacy, up to 130lm/W
  • SmartOptics® inside consists of a three-layer light guide that provides even illumination.

Construction & Mounting

HOUSING
Extruded aluminum housings are supplied in nominal lengths of 2 ft- 8 ft. Fixtures may be continuously rowed (contact factory for details). Easy access to remote driver and LED boards. End caps are extruded aluminum.
REFLECTOR
Integral SmartOptics® reflector inside LED housing with excessive reflectivity for increased lumen output.
FINISH
Standard powder-coated colors are white,black and silver. Custom processed wood finishes, aluminum anodized finishes, chrome/gold plating and custom finishes are available as well. We also accept RAL and Pantone numbers for powder-coating color choices.
OPTICS
Downlight SmartOptics® inside consists of a three-layer light guide that provides even illumination. Uplight is a Cosine 150-degree batwing element providing a more flat even light distribution.
MOUNTING

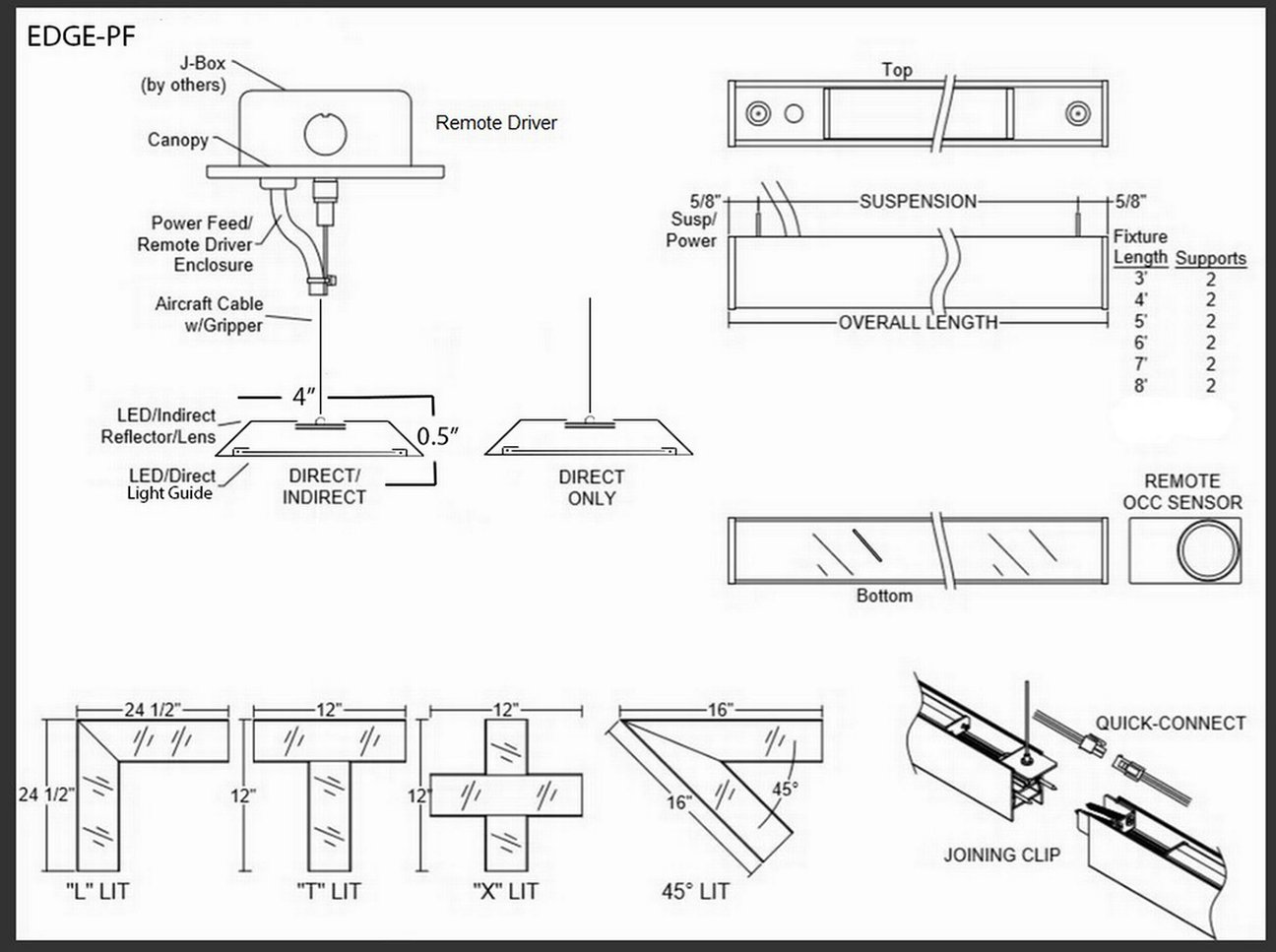

Cable mounting supports or 2 wire feed, powers the Edge because it's too small to fit a driver. Various size canopies and different power supplies are available. The cable uses gripper-style locking for field adjustments and is connected to the driver. Canopy mounts to standard J-box and the standard cable lengths are 4 feet.
LABELING
UL Approved IBEW Union Made

LED Performance

LED Output CCT Color Temp Watts Lumens Lumens per Watt CCT Multiplier
Low 3000 4.5 WPF (Indirect 2.1 WPF) 350 LPF 78 LPW 2700 = 1.07/ 3000= 1 /3500=.97/4000 = .93
Medium 3000 6.5 WPF (Indirect 3.1 WPF) 500 LPF 78 LPW 2700 = 1.07/ 3000= 1 /3500=.97/4000 = .93
High 3000 9.7 WPF (Indirect 4.7 WPF) 123 LPF 78 LPW 2700 = 1.07/ 3000= 1 /3500=.97/4000 = .93
Very High 3000 13.5 WPF (Indirect 6.5 WPF) 1000 LPF 78 LPW 2700 = 1.07/ 3000= 1 /3500=.97/4000 = .93
  • The table above is a quick reference. When calculating loads make sure you add direct and indirect LPW to get total wattage. Please refer to photometric report for detailed information.
  • Our light engines are precisely designed for optimal operation of LED assemblies.
  • Our standard LED's CCT (correlated color temperature) range is 2700K to 4000K. Other CCT values are available upon request.
  • We log LED bin codes for each project we supply to ensure color consistency and keep a record of those projects for future reference.
  • CRI offered is 80+, and 90+ Note: on 90+ CRI use .85 multiplier
  • Tunable white, warm dim and other special LED colors available.
  • Custom Lumens Available
  • We design our own printed circuit boards to ensure high luminescence efficiency, low thermal resistance and long-term reliable operation.
  • Light engines are easily replaced.
  • We use only recognized brand LED's with 3 SDCM (standard deviation color matching) with high color consistency. 2 SDCM available upon request.
  • If you require a special LED manufacturer, please contact us. LED chip manufacturers used by Picasso are primarily (but not limited to) Nichia, Cree and Samsung.
  • LRP - “LED Reel Program” – LED’s for printed circuit boards come on reels’ like old 8mm projectors and they're sold in lots just like fabric. At Picasso Lighting, we have a program where we make sure all of your reels come from the same lot for each project. This ensures excellent color consistency in large open spaces.
  • LED life is rated at 50,000 hours

Electrical / Driver

  • Drivers - Our drivers are specifically selected based on fixture application to ensure ultimate reliability and long life. We use only UL recognized brands of LED drivers. Our LED drivers feature HPF (high power factor), universal voltage 110 - 277 VAC and include 0-10V dimming. Please note, 277v has longer distances from power feed to power feed then 120v.
  • If required, we can supply premium drivers such as Lutron, Eldoled and others upon request. Advanced control systems compliant drivers such as POE,DALI, DMX, etc. are also available, please consult factory.
  • Rated life (90% survivorship) of 50,000 hours at 50º C max. ambient (and 70º C max. case) temperature. At maximum driver load: Efficiency >84%, PF>0.9, THD<20%.
  • Our LED drivers feature HPF (high power factor), universal voltage 110 - 277 VAC and include 0-10V dimming.
  • Remote emergency drivers are an option, long life, high temperature, recyclable Ni-Cad battery pack with test switch and charge indicator. EMR is a minimum of 90 minutes operation to meet code.
  • POE - We are working with Molex/Igor POE systems. We can add a POE driver into our fixtures or remote them. Based on the fixture you select, we will notify you (or you can contact the factory) to see if we can install the P-driver or the P-driver needs to be remote. Just add POE1 in the spec and we will advise. Please keep in mind you need to specify a complete POE control system before specifying POE1.

Build Your Spec Sheet

Certifications & Warranties

  • Limited five-year (50,000 hours) warranty on all products. Limited ten-year (100,000 hours) warranty on all Lutron drivers.
  • DLC listed products will have DLC Logo.
  • Chicago Plenum and IC products are available upon request.
  • Warranty does not cover damage caused by transport, damage caused by using the fixture in an area it is not UL rated for, damage caused by negligence, lack of maintenance, attempts to repair by unqualified or unauthorized personnel, by using non-original accessories/parts, fixtures installed in systems without power surge protection.
  • UL and CUL listed for dry and damp locations.
  • IBEW USA Union All fixtures are IBEW manufactured and assembled in the USA.
  • We manufacture based on approved spec sheets and submittals signed by professionals responsible. Change orders must be in writing and will delay delivery.
  • Picasso Lighting must receive in writing any thought to be defective products discovered, no later than 4 weeks from delivery to; [email protected]. Picasso Lighting will send a field technician to the site to evaluate the said defective product. We do accept field repair from licensed electrical contractors but not without a written agreement signed by Picasso Lighting official. Failure to adhere to all warranty and certifications will void any recompense and the warranty.

Downloads

PHOTOMETRIC REPORTS & IES

Catalog Number LED IES File PDF Report
Edge 350 Lumens Direct 350 Lumens Indirect 80+ CRI 3500k DOWNLOAD
Edge 350 Lumens Direct 500 Lumens Indirect 80+ CRI 3500k DOWNLOAD
Edge 350 Lumens Direct 750 Lumens Indirect 80+ CRI 3500k DOWNLOAD
Edge 350 Lumens Direct 1000 Lumens Indirect 80+ CRI 3500k DOWNLOAD
Edge 500 Lumens Direct 350 Lumens Indirect 80+ CRI 3500k DOWNLOAD
Edge 500 Lumens Direct 500 Lumens Indirect 80+ CRI 3500k DOWNLOAD
Edge 500 Lumens Direct 750 Lumens Indirect 80+ CRI 3500k DOWNLOAD
Edge 500 Lumens Direct 1000 Lumens Indirect 80+ CRI 3500k DOWNLOAD
Edge 750 Lumens Direct 350 Lumens Indirect 80+ CRI 3500k DOWNLOAD
Edge 750 Lumens Direct 500 Lumens Indirect 80+ CRI 3500k DOWNLOAD
Edge 750 Lumens Direct 750 Lumens Indirect 80+ CRI 3500k DOWNLOAD
Edge 750 Lumens Direct 1000 Lumens Indirect 80+ CRI 3500k DOWNLOAD
Edge 1000 Lumens Direct 350 Lumens Indirect 80+ CRI 3500k DOWNLOAD
Edge 1000 Lumens Direct 500 Lumens Indirect 80+ CRI 3500k DOWNLOAD
Edge 1000 Lumens Direct 750 Lumens Indirect 80+ CRI 3500k DOWNLOAD
Edge 1000 Lumens Direct 1000 Lumens Indirect 80+ CRI 3500k DOWNLOAD

SPEC SHEETS

Edge Light Guide Lens Standard Spec Sheet DOWNLOAD
Edge Light Guide Lens Custom Spec Sheet BUILD

Instructions

Please contact factory for Instruction and Revit Files DOWNLOAD
