Cobra 3 View all our Cobra products
Pendant Small (Remote Drivers)
Overview
- /kobre/ mid 17th century: from Portuguese cobra de capello, literally ‘snake with hood’, based on Latin colubra ‘snake’
- Cobra was designed from our Cobra X, which was named after the Marine helicopter, the Cobra. Cobra X is an individual pendant, that can be seen in our Custom Portfolio category.
- DESIGNER SELECTIONS
- The Cobra has 1 profile size, which is a three inch diameter. Drivers are all remote with different mounting applications,see below.

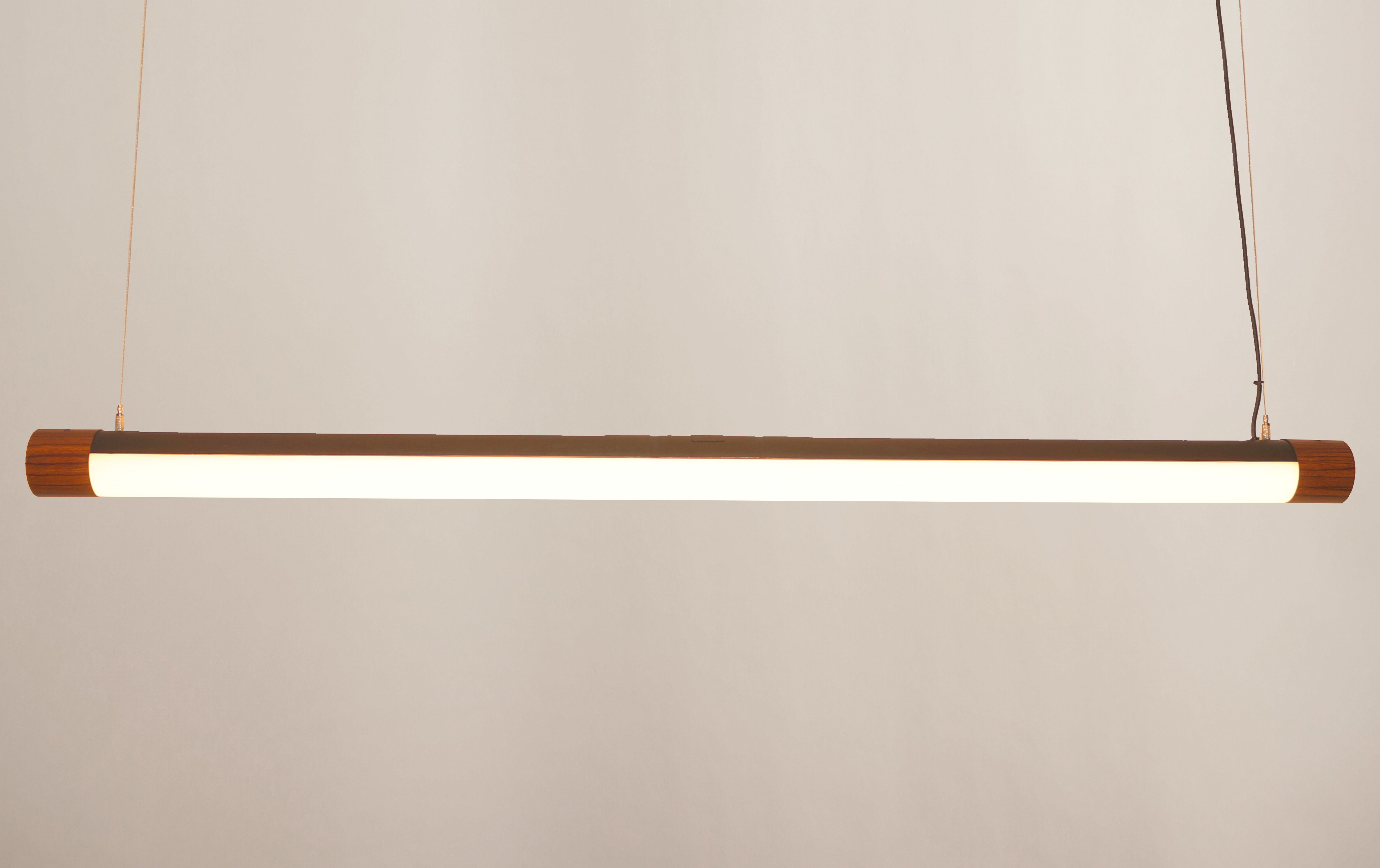

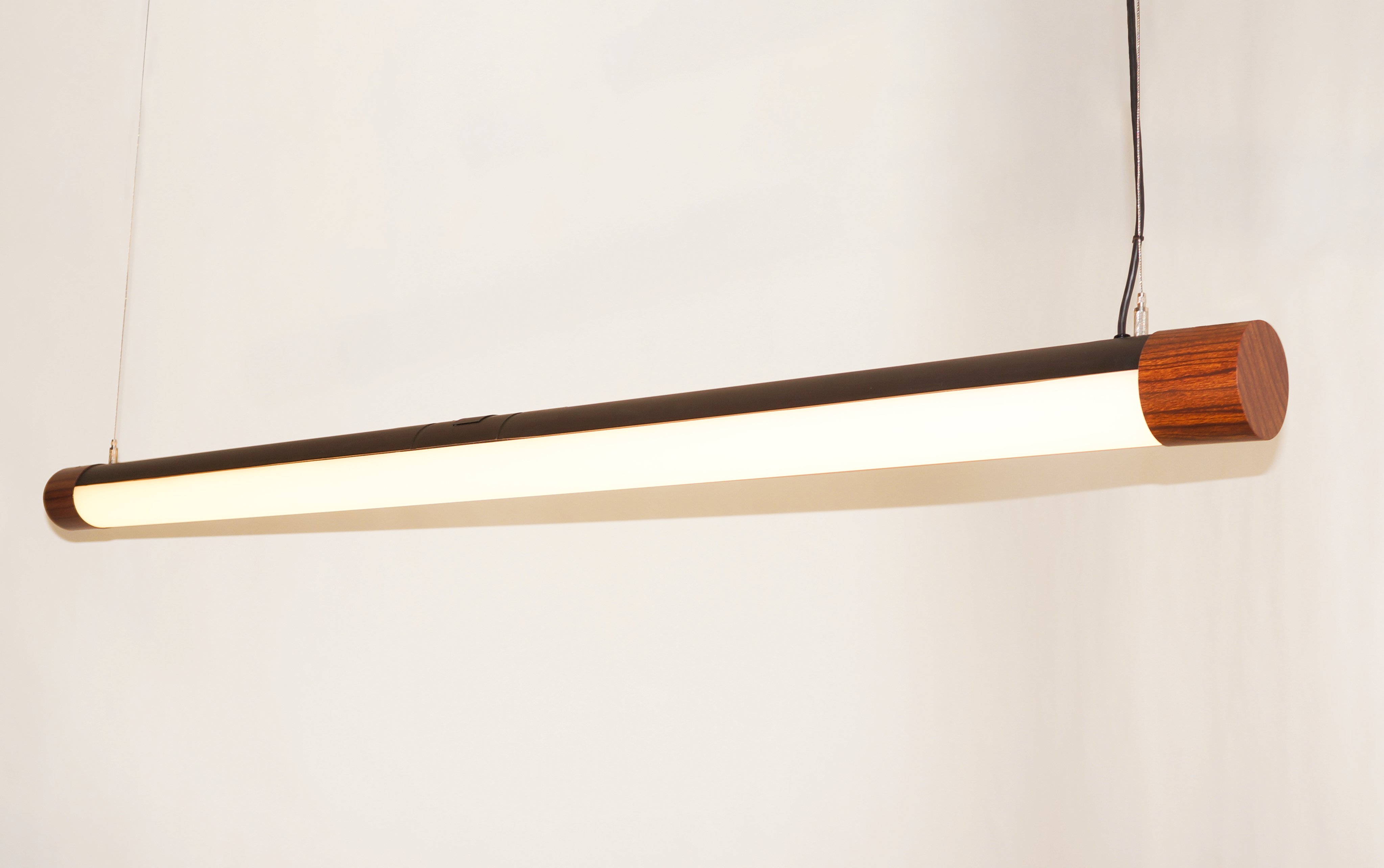

- Cobra Series has end caps that can be customized by having the same color as the housing or finish of your choice.
- Cobra Series has multiple choices for canopies and colors, just scroll down for your choices.
- Cobra Series is available in almost any CCT available in the market, we've selected the most popular , but don't let that stop you from asking for something different

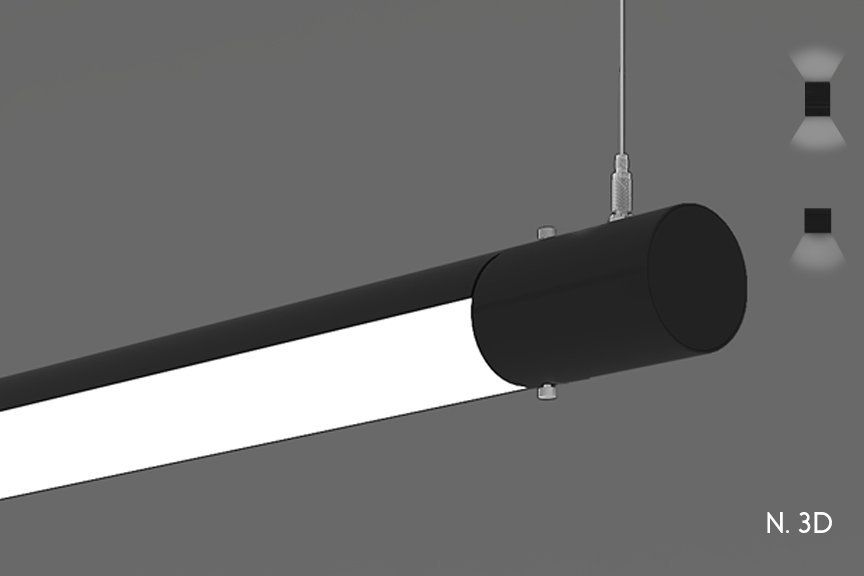

- Cobra Series is available in direct only, indirect only and direct/indirect. Please note our Cobra is only available with remote drivers because of its small profile. We can also tune in our drivers to specific lumen output if required
- Cobra Series is always available for your projects special customization needs, just contact your local agent
- The Cobra qualifies as "Made in America" and “American Made”, and it is also part of our ECO sustainable end of life program.
- For all: ies files, pictures, instructions, rfa files, and warranties...scroll to bottom.

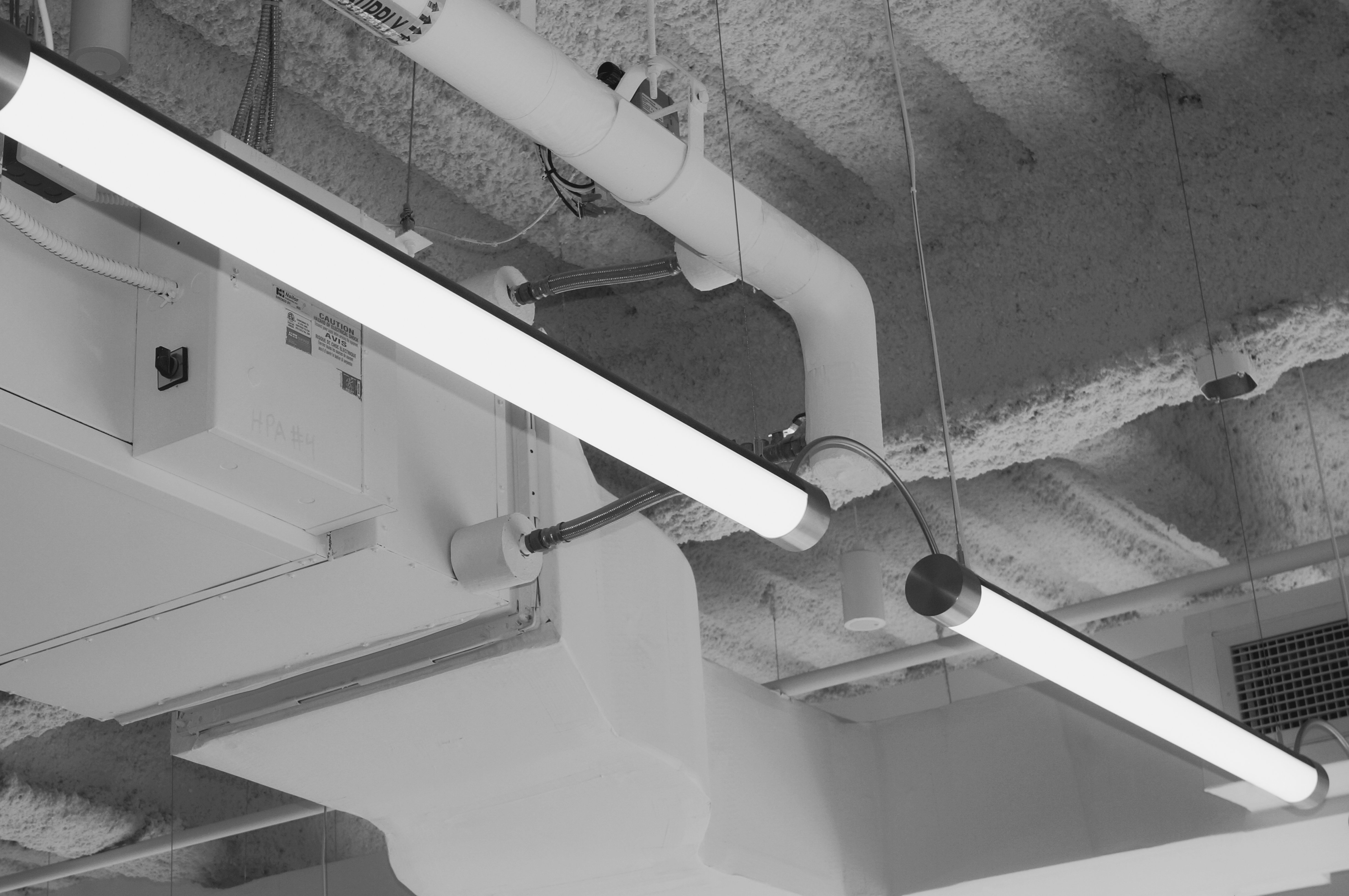

- Cobra Series is available in Pendant and wall

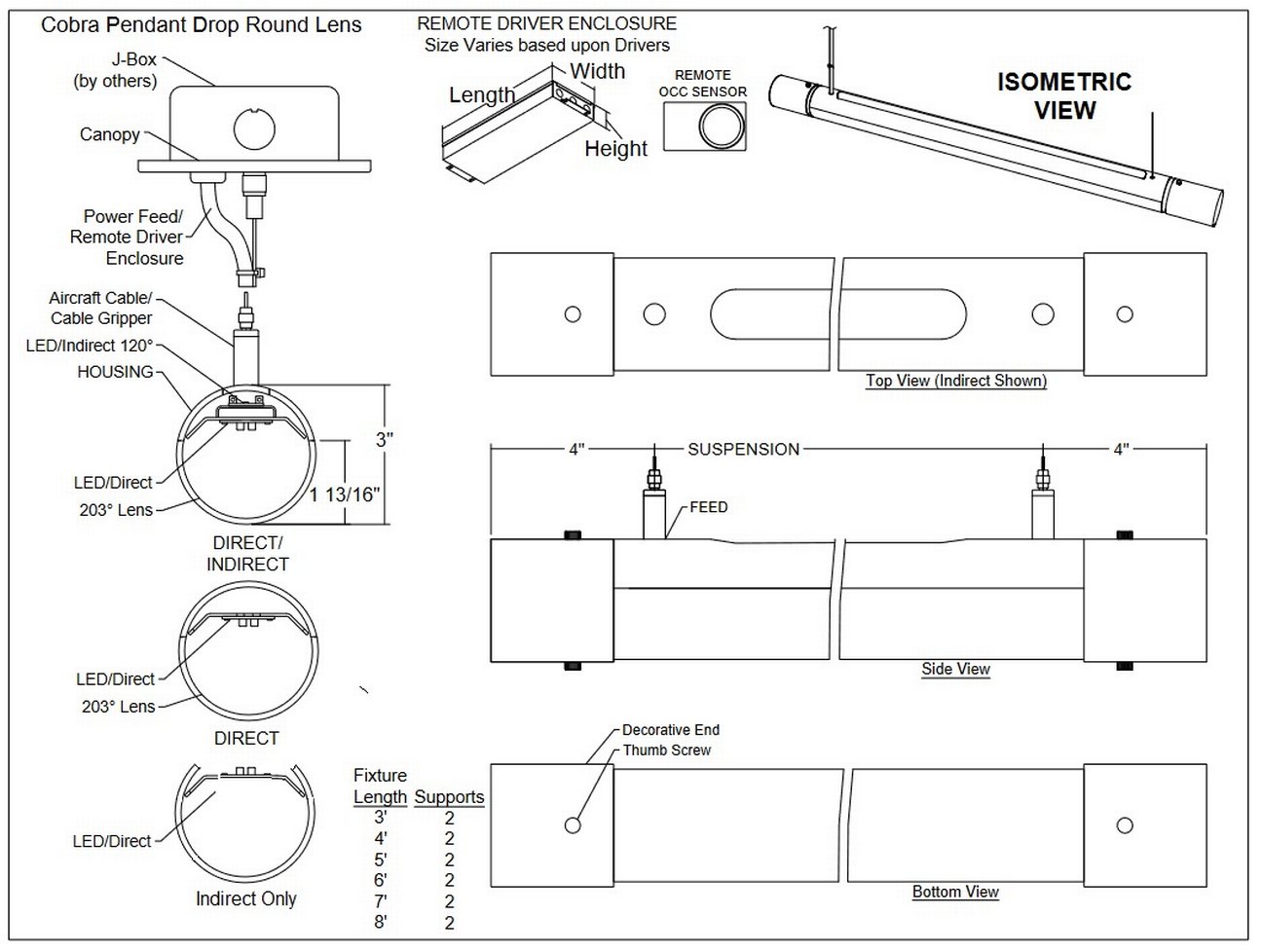

Construction & Mounting
- HOUSING
- Extruded aluminum housings are supplied in nominal lengths of 2 ft- 8 ft. Fixtures may be continuously rowed (contact factory for details). Drivers are remotely located. Decorative end caps protect the ends and add to hiding light leaks.
- REFLECTOR
- Integral powder-coated LED housing with excessive reflectivity for increased lumen output

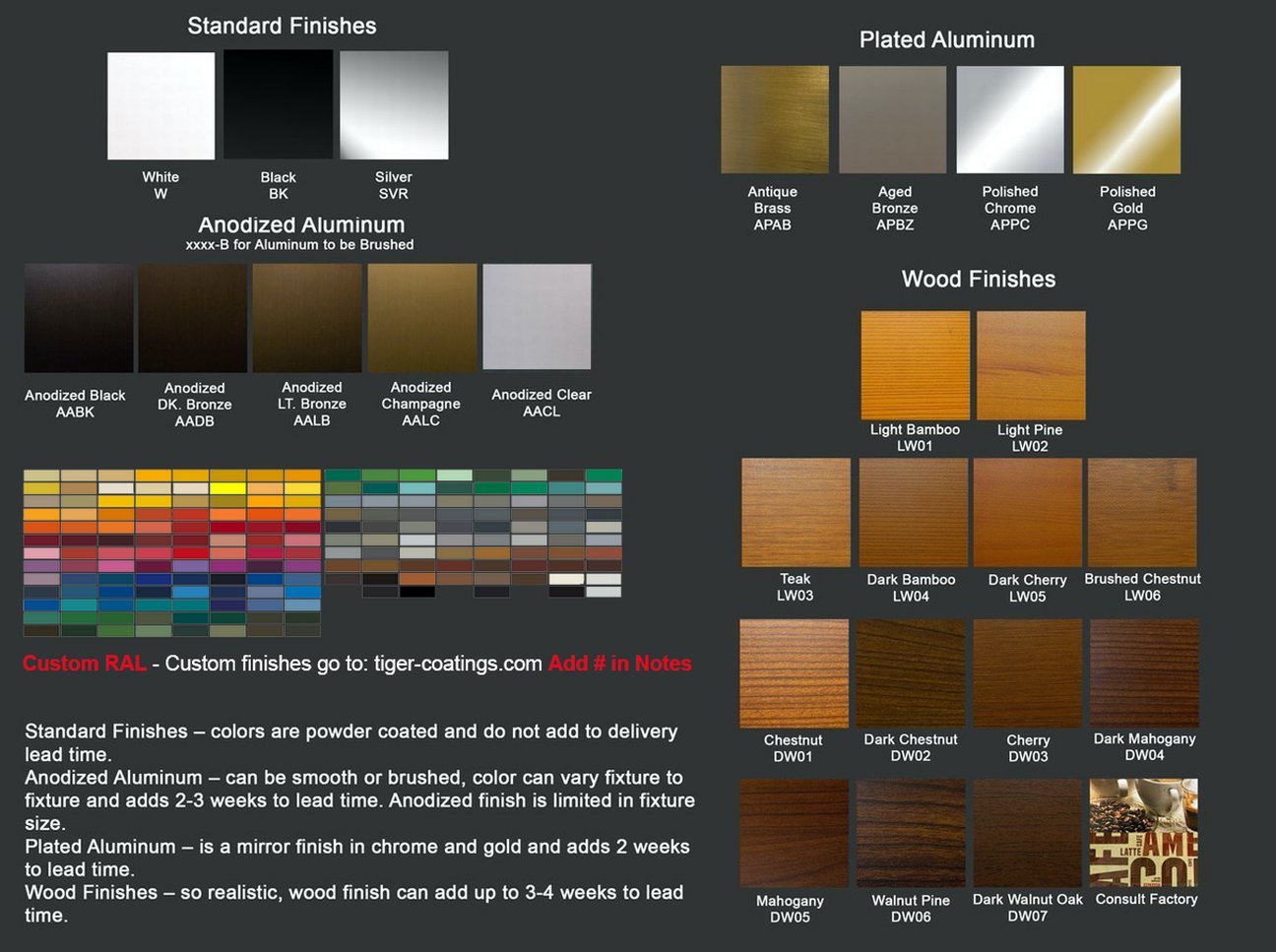

- FINISH
- Standard powder-coated colors are white,black and silver. Custom processed wood finishes, aluminum anodized finishes, chrome/gold plating and custom finishes are available as well. We also accept RAL and Pantone numbers for powder-coating color choices
- OPTICS
- Extruded snap-in frosted acrylic lens formulated for LED light sources.

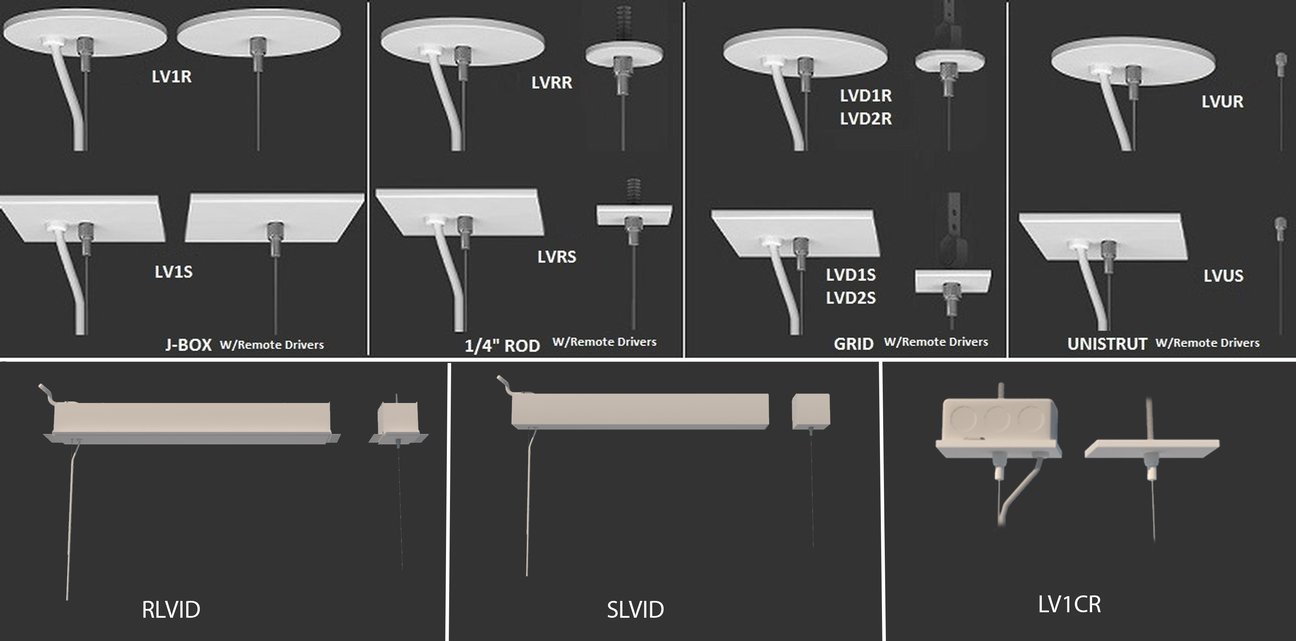

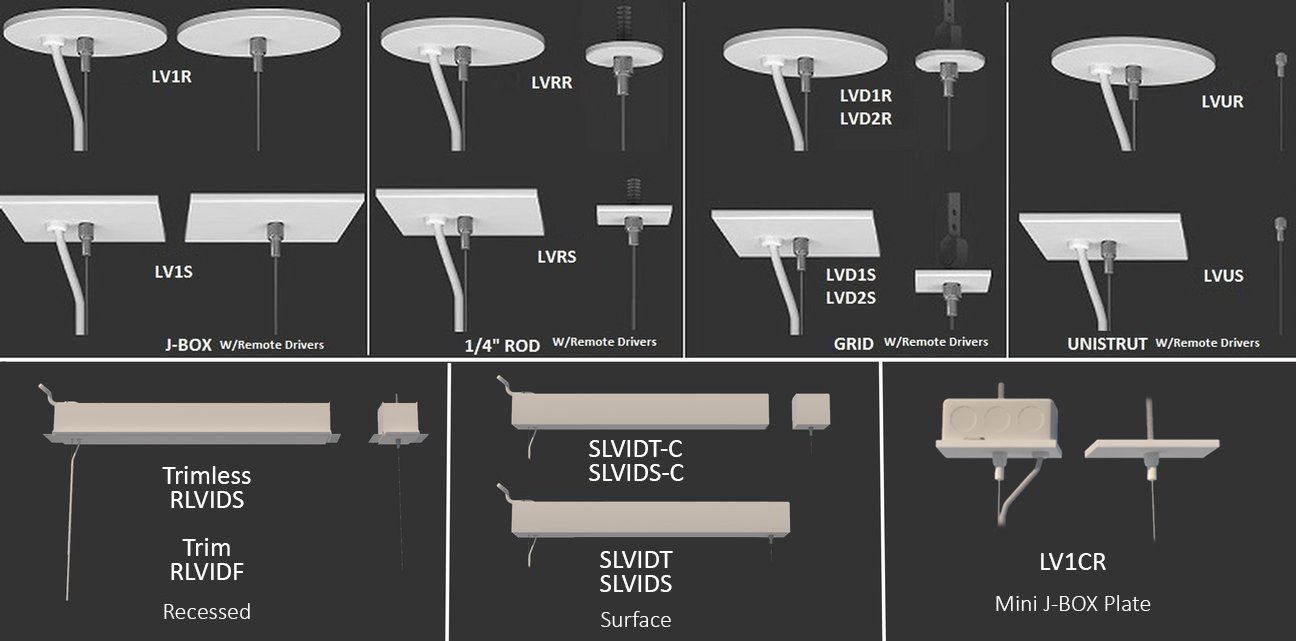

- MOUNTING
- Cable mounting supports and powers the Cobra because it's too small to fit a driver. Various size canopies and different power supplies are available. Cable uses gripper style locking for field adjustments and is connected to the driver. Canopy mounts to standard J-box and the standard cable lengths are 4 feet.
- LABELING
- UL Approved IBEW Union Made
LED Performance
| LED Output | CCT Color Temp | Watts | Lumens | Lumens per Watt | CCT Multiplier |
|---|---|---|---|---|---|
| Low | 3000 | 5.02 WPF (Indirect 2.7WPF) | 350 LPF | 68 LPW | 2700 = .95 |
| Medium | 3000 | 7.4 WPF (Indirect 3.9WPF) | 500 LPF | 66 LPW | 3000=1 /3500=1.01/4000/1.03 |
- The table above is a quick reference. When calculating loads make sure you add direct and indirect LPW to get total wattage. Please refer to photometric report for detailed information.
- Our light engines are precisely designed for optimal operation of LED assemblies.
- Our standard LED's CCT (correlated color temperature) range is 2700K to 4000K. Other CCT values are available upon request.
- We log LED bin codes for each project we supply to ensure color consistency and keep a record of those projects for future reference.
- CRI offered is 80+, and 90+ Note: on 90+ CRI use .85 multiplier
- Tunable white, warm dim and other special LED colors available
- Custom Lumens Available
- We design our own printed circuit boards to ensure high luminescence efficiency, low thermal resistance and long-term reliable operation.
- Light engines are easily replaced.
- We use only recognized brand LED's with 3 SDCM (standard deviation color matching) with high color consistency. 2 SDCM available upon request.
- If you require a special LED manufacturer, please contact us. LED chip manufacturers used by Picasso are primarily (but not limited to) Nichia, Cree and Samsung.
- LRP - “LED Reel Program” – LED’s for printed circuit boards come on reels’ like old 8mm projectors and they're sold in lots just like fabric. At Picasso Lighting, we have a program where we make sure all of your reels come from the same lot for each project. This ensures excellent color consistency in large open spaces.
- LED life is rated at 50,000 hours
Electrical / Driver
- Drivers - Our drivers are specifically selected based on fixture application to ensure ultimate reliability and long life. We use only UL recognized brands of LED drivers. Our LED drivers feature HPF (high power factor), universal voltage 110 - 277 VAC and include 0-10V dimming. Please note, 277v has longer distances from power feed to power feed then 120v.
- If required, we can supply premium drivers such as Lutron, Eldoled and others upon request. Advanced control systems compliant drivers such as POE,DALI, DMX, etc. are also available, please consult factory.
- Rated life (90% survivorship) of 50,000 hours at 50º C max. ambient (and 70º C max. case) temperature. At maximum driver load: Efficiency >84%, PF>0.9, THD<20%.
- Our LED drivers feature HPF (high power factor), universal voltage 110 - 277 VAC and include 0-10V dimming.
- Remote emergency drivers are an option, long life, high temperature, recyclable Ni-Cad battery pack with test switch and charge indicator. EMR is a minimum of 90 minutes operation to meet code.
- POE - We are working with Molex/Igor POE systems. We can add a POE driver into our fixtures or remote them. Based on the fixture you select, we will notify you (or you can contact the factory) to see if we can install the P-driver or the P-driver needs to be remote. Just add POE1 in the spec and we will advise. Please keep in mind you need to specify a complete POE control system before specifying POE1.
Certifications & Warranties
- Limited five-year limited warranty on all products that are installed according to the product’s specifications. Fixture must be properly installed by qualified licensed electricians, who meet and understand local installation requirements. Proper ambient conditions are to be met. The normal indoor temperatures of 50-90 degrees F, no more than 95% RH and sufficient air flow are required. Fixture should not be modified, and no maintenance or repairs should be performed without the written authorization from Picasso Lighting.
- We manufacture based on approved spec sheets and submittals signed by the customers. Change orders must be in writing and will delay delivery.
- Picasso Lighting reserves the right to repair or replace a defective product with another product with a similar design and the same or better performance, or to refund the distributor for the purchase price. The costs of labor to replace luminaires are not covered.
- Warranty does not cover damage caused by transportation, damage caused by using the fixture in an area it is not UL rated for, damage caused by negligence, lack of maintenance, attempts to repair by unqualified or unauthorized personnel, by using non-original accessories/parts, fixtures installed in systems without power surge protection.
- Picasso Lighting must receive in writing any complaints regarding the defective products, no later than 3 weeks from delivery addressed to: [email protected]. Picasso Lighting will send a field technician to the site to evaluate the said defective product or may require product to be sent back to the factory for repair. The customer is responsible for the costs of disassembly and reassembly. We do accept field repairs and replacement labor from licensed electrical contractors but not without a written agreement signed by Picasso Lighting official. Failure to adhere to all warranty and certifications will void any recompense and the warranty.
- IBEW USA Union All fixtures are IBEW manufactured and assembled in the USA. UL listed for dry and damp locations.
Downloads
PHOTOMETRIC REPORTS & IES
| Catalog Number | LED | IES File | PDF Report |
|---|---|---|---|
| Cobra 350 Lumens Direct 350 Lumens Indirect | 80+CRI 3000K | DOWNLOAD | DOWNLOAD |
| Cobra 350 Lumens Direct 350 Lumens Indirect | 80+CRI 3500K | DOWNLOAD | DOWNLOAD |
| Cobra 350 Lumens Direct 350 Lumens Indirect | 80+CRI 4000k | DOWNLOAD | DOWNLOAD |
| Cobra 500 Lumens Direct 500 Lumens Indirect | 80+CRI 3000K | DOWNLOAD | DOWNLOAD |
| Cobra 500 Lumens Direct 500 Lumens Indirect | 80+CRI 3500K | DOWNLOAD | DOWNLOAD |
| Cobra 500 Lumens Direct 500 Lumens Indirect | 80+CRI 4000k | DOWNLOAD | DOWNLOAD |
| Cobra 700 Lumens Direct 700 Lumens Indirect | 80+CRI 3000K | DOWNLOAD | DOWNLOAD |
| Cobra 700 Lumens Direct 700 Lumens Indirect | 80+CRI 3500K | DOWNLOAD | DOWNLOAD |
| Cobra 700 Lumens Direct 700 Lumens Indirect | 80+CRI 4000k | DOWNLOAD | DOWNLOAD |
| Cobra 1000 Lumens Direct 1000 Lumens Indirect | 80+CRI 3000K | DOWNLOAD | DOWNLOAD |
| Cobra 1000 Lumens Direct 1000 Lumens Indirect | 80+CRI 3500K | DOWNLOAD | DOWNLOAD |
| Cobra 1000 Lumens Direct 1000 Lumens Indirect | 80+CRI 4000k | DOWNLOAD | DOWNLOAD |
| Cobra 1200 Lumens Indirect | 90+CRI 3000k | DOWNLOAD | DOWNLOAD |
