  • Geometry /je ametre/ noun a branch of mathematics that deal with shapes and figures

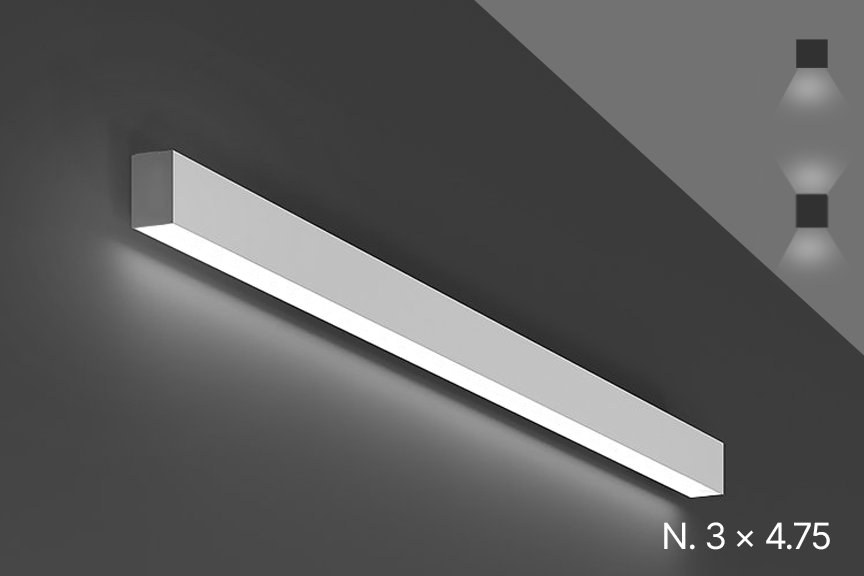

  • Geo Series two, three and four are popular luminaries for general up-lighting and down-lighting. Extremely unique when designed in custom finishes. Three profiles designed to be directly proportional with room sizes.
  • DESIGNER SELECTIONS
  • Geo Series has 3 profile sizes; two inches in width by four inches in height, three inches in width by four and three-quarter inches in height, and four inches in width by five and a quarter inch in height.
  • Geo Series has a multitude of lens options; Flush Lens, Regressed Lens and Continuous Regressed Lens. Beam degree talents within those include, seven downlight options with 5 uplight options.
  • This product has multiple choices for canopies and colors, just scroll down for your choices.
  • Geo Series is available in almost any CCT available in the market, we've selected the most popular, but don't let that stop you from asking for something different.
  • Geo Series has options of pendant, wall, surface and recessed mounting options.
  • Geo Series is always available for your project’s special customization needs, please contact your agent.
  • Geo Series qualifies as "Made in America", “American Made” and is part of our ECO sustainable end of life program.
  • For all: ies files, pictures, instructions, rfa files, and warranties...scroll to bottom.

Construction & Mounting

HOUSING
Extruded aluminum housings are supplied in nominal lengths of 4 ft., 6 ft., 8 ft. and 12 ft. Fixtures may be continuously rowed (contact factory for details). Internal components are constructed from min. 20 gauge die-formed steel. Easy access to driver and LED boards. End caps are extruded aluminum. Custom sizes are available.
REFLECTOR
Integral powder-coated LED housing with excessive reflectivity for increased lumen output
FINISH
Standard powder-coated colors are white, black and silver. Custom processed wood finishes, aluminum anodized finishes, chrome/gold plating and custom finishes are available as well. We also accept RAL and Pantone numbers for powder-coating color choices.
OPTICS
Direct component provided with an extruded snap-in frosted acrylic lens formulated for LED light sources. Indirect component LED strips are mounted in an extruded aluminum channel with an integral clear acrylic dust cover.
MOUNTING

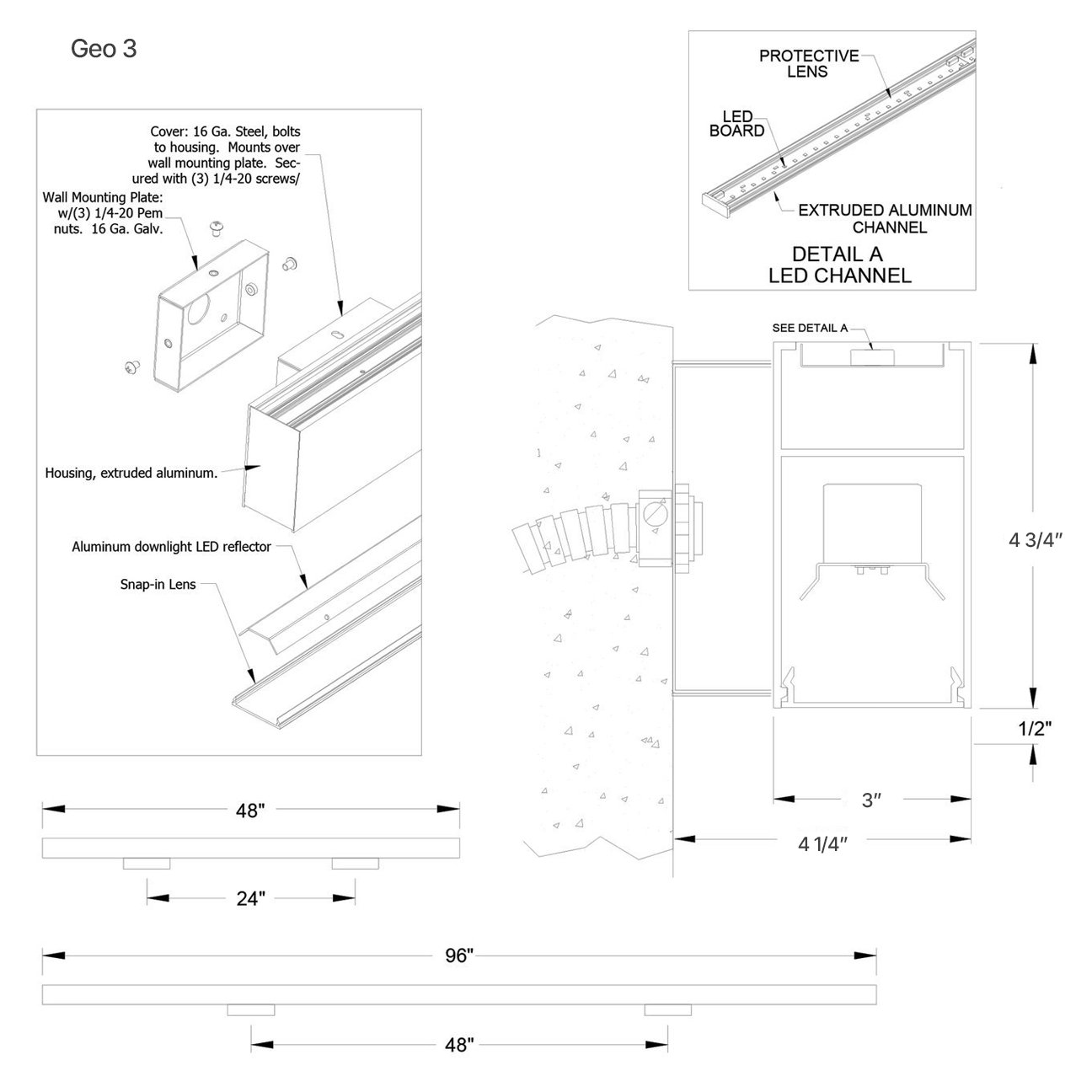

Mounting bracket covers J-box and fixture attaches to mounting bracket. See mounting detail drawing.

LED Performance

LED Output CCT Color Temp Watts Lumens Lumens per Watt CCT Multiplier
Low 3500 CF 350 LPF CF 2700 = .91
Medium 3500 CF 500 LPF CF 3000 = .96
High 3500 5.28 750 LPF 142 LPW 3500=1.
Very High 3500 CF 1000 LPF CF 4000=1.04
Super High 3500 CF 1500 LPF 0 0
  • The table above is a quick reference. When calculating loads make sure you add direct and indirect LPW to get total wattage. Please refer to the photometric report for detailed information.
  • Our light engines are precisely designed for optimal operation of LED assemblies.
  • Our standard LED's CCT (correlated color temperature) range is 2700K to 4000K. Other CCT values are available upon request.
  • We log LED bin codes for each project we supply to ensure color consistency and keep a record of those projects for future reference.
  • CRI offered is 80+, and 90+ Note: on 90+ CRI use .85 multiplier
  • Tunable white, warm dim, and other special LED colors available.
  • Custom Lumens Available
  • We design our own printed circuit boards to ensure high luminescence efficiency, low thermal resistance and long-term reliable operation.
  • Light engines are easily replaced.
  • We use only recognized brand LED's with 3 SDCM (standard deviation color matching) with high color consistency. 2 SDCM available upon request.
  • If you require a special LED manufacturer, please contact us. LED chip manufacturers used by Picasso are primarily (but not limited to) Nichia, Cree and Samsung.
  • LRP - “LED Reel Program” – LED’s for printed circuit boards come on reels’ like old 8mm projectors and they're sold in lots just like fabric. At Picasso Lighting, we have a program where we make sure all of your reels come from the same lot for each project. This ensures excellent color consistency in large open spaces.
  • LED life is rated at 50,000 hours

Electrical / Driver

  • Drivers - Our drivers are specifically selected based on fixture application to ensure ultimate reliability and long life. We use only UL-recognized brands of LED drivers. Our LED drivers feature HPF (high power factor), universal voltage 110 - 277 VAC, and include 0-10V dimming. Please note, 277v has longer distances from power feed to power feed than 120v.
  • If required, we can supply premium drivers such as Lutron, Eldoled, and others upon request. Advanced control systems compliant drivers such as POE, DALI, DMX, etc. are also available, please consult factory.
  • Rated life (90% survivorship) of 50,000 hours at 50º C max. ambient (and 70º C max. case) temperature. At maximum driver load: Efficiency >84%, PF>0.9, THD<20%.
  • Our LED drivers feature HPF (high power factor), universal voltage 110 - 277 VAC, and include 0-10V dimming.
  • Emergency drivers are factory installed as an option, long life, high temperature, recyclable Ni-Cad battery pack with test switch and charge indicator. EMR is a minimum of 90 minutes of operation to meet code.
  • POE - We are working with Molex/Igor POE systems. We can add a POE driver into our fixtures or remote them. Based on the fixture you select, we will notify you (or you can contact the factory) to see if we can install the P-driver or the P-driver needs to be remote. Just add POE1 in the spec and we will advise. Please keep in mind you need to specify a complete POE control system before specifying POE1.

Build Your Spec Sheet

Certifications & Warranties

  • Limited five-year (50,000 hours) warranty on all products. Limited ten-year (100,000 hours) warranty on all Lutron drivers.
  • I.C.-rated fixtures are available upon request.
  • Chicago Plenum and IC products are available upon request.
  • Warranty does not cover damage caused by transport, damage caused by using the fixture in an area it is not UL rated for, damage caused by negligence, lack of maintenance, attempts to repair by unqualified or unauthorized personnel, by using non-original accessories/parts, fixtures installed in systems without power surge protection.
  • UL and CUL listed for dry and damp locations.
  • IBEW USA Union All fixtures are IBEW manufactured and assembled in the USA.
  • We manufacture based on approved spec sheets and submittals signed by professionals responsible. Change orders must be in writing and will delay delivery.
  • Picasso Lighting must receive in writing any thought to be defective products discovered, no later than 4 weeks from delivery to; [email protected]. Picasso Lighting will send a field technician to the site to evaluate the said defective product. We do accept field repair from licensed electrical contractors but not without a written agreement signed by Picasso Lighting official. Failure to adhere to all warranty and certifications will void any recompense and the warranty.
