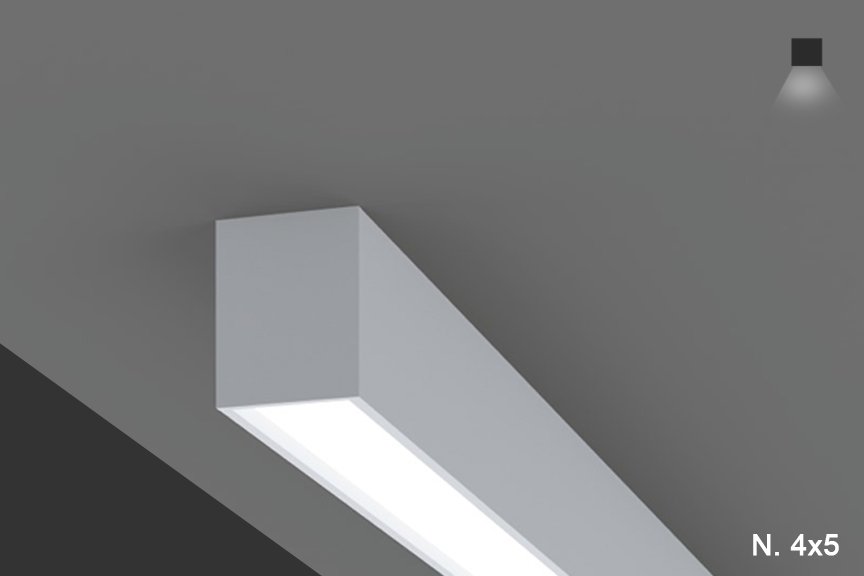

Overview

  • Aesthetically pleasing design, no visible screws
  • One piece extruded aluminum housing with integral driver
  • Direct lighting only
  • Continuous row mounting, standard
  • Can also be specified as a pendant or surface wall
  • Various patterns available - consult factory
  • Standard color white, black. Custom wood, anodizing, RAL/Pantone #

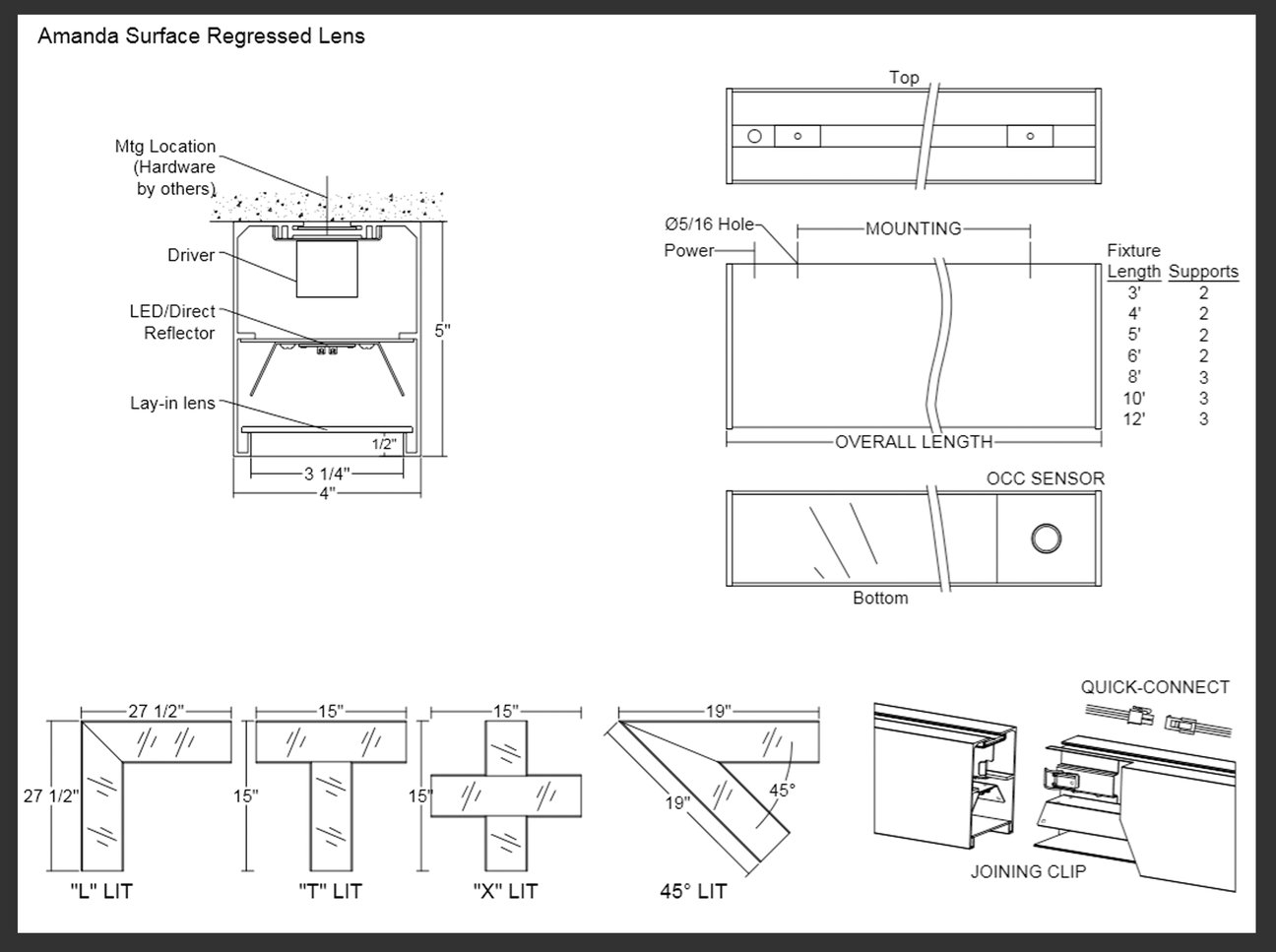

Construction & Mounting

HOUSING
Extruded aluminum housings are supplied in nominal lengths of 4 ft., 6 ft., 8 ft. and 12 ft. Fixtures may be continuously rowed (contact factory for details). Internal components are constructed from min. 20-gauge die-formed steel. Easy access to driver and LED boards. End caps are extruded aluminum. Custom sizes are available.
REFLECTOR
Integral powder-coated LED housing with excessive reflectivity for increased lumen output
FINISH

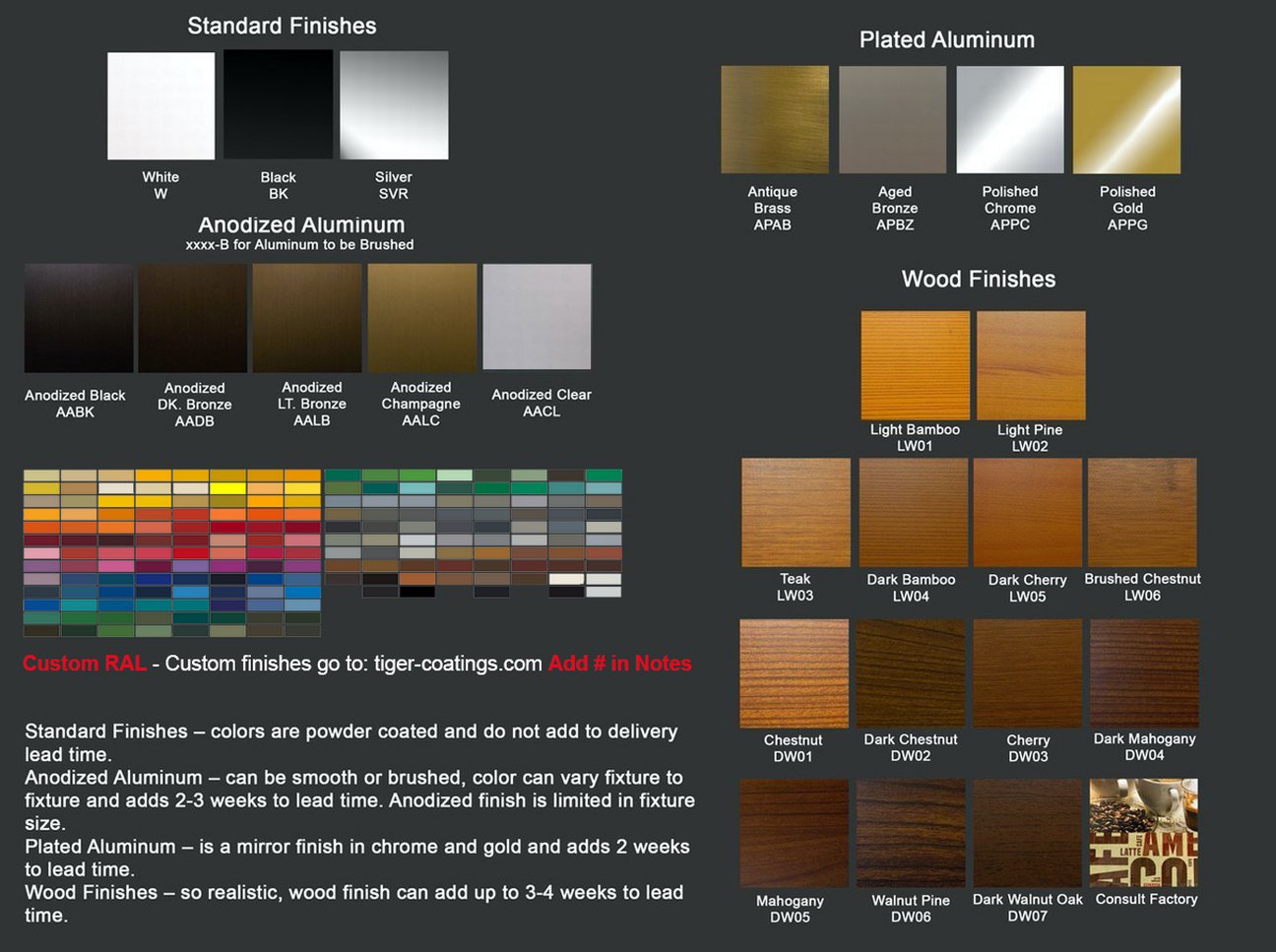

Standard powder-coated colors are white and black. Custom processed wood finishes and aluminum anodized finishes are available as well: see finishes chart. We will also accept RAL and Pantone numbers for powder-coating color choices.
OPTICS
Regressed, lay-in acrylic lens formulated for LED light sources. Lift and shift lens removal.
MOUNTING
Surface mounted fixtures have pre-drilled holes for ¼” threaded rod by others. Surface mounted fixtures have ½" knockout for power feed.

LED Performance

LED Output CCT Color Temp Watts Lumens Lumens per Watt CCT Multiplier
Low 3000 4.28 WPF 350 LPF 82 2700 = .95
Medium 3000 6.28 WPF 500 LPF 80 3000 = 1
High 3000 9.38 WPF 750 LPF 80 3500 = 1.01
Very High 3000 12.63 WPF 1000 LPF 80 4000 = 1.03
  • The table above is a quick reference. When calculating loads make sure you add direct and indirect LPW to get total wattage. Please refer to photometric report for detailed information.
  • Our light engines are precisely designed for optimal operation of LED assemblies.
  • Our standard LED's CCT (correlated color temperature) range is 2700K to 4000K. Other CCT values are available upon request.
  • We log LED bin codes for each project we supply to ensure color consistency and keep a record of those projects for future reference.
  • CRI offered is 80+, and 90+ Note: on 90+ CRI use .85 multiplier
  • Tunable white, warm dim and other special LED colors available.
  • We design our own printed circuit boards to ensure high luminescence efficiency, low thermal resistance and long-term reliable operation.
  • Light engines are easily replaced.
  • We use only recognized brand LED's with 3 SDCM (standard deviation color matching) with high color consistency. 2 SDCM available upon request.
  • LRP - “LED Reel Program” – LED’s for printed circuit boards come on reels’ like old 8mm projectors and they're sold in lots just like fabric. At Picasso Lighting, we have a program where we make sure all of your reels come from the same lot for each project. This ensures excellent color consistency in large open spaces.
  • LED life is rated at 50,000 hours
  • Custom Lumens Available

Electrical / Driver

  • Our drivers are specifically selected based on fixture application to ensure ultimate reliability and long life. We use only UL recognized brands of LED drivers.
  • If required, we can supply premium drivers such as Lutron, Eldoled and others upon request. Advanced control systems compliant drivers such as POE,DALI, DMX, etc. are also available.
  • Rated life (90% survivorship) of 50,000 hours at 50º C max. ambient (and 70º C max. case) temperature. At maximum driver load: Efficiency >84%, PF>0.9, THD<20%.
  • Our LED drivers feature HPF (high power factor), universal voltage 110 - 277 VAC and include 0-10V dimming.
  • Emergency drivers are factory installed, long life, high temperature, recyclable Ni-Cad battery pack with test switch and charge indicator. EMR is minimum of 90 minutes operation to meet code.

Build Your Spec Sheet

Certifications & Warranties

  • Limited five-year (50,000 hours) warranty on all products.
  • I.C. rated fixtures are available upon request.
  • All fixtures are IBEW manufactured and assembled.
  • UL and CUL listed for dry and damp locations.
  • Chicago Plenum products are available upon request.
  • Made in the U.S.A.
